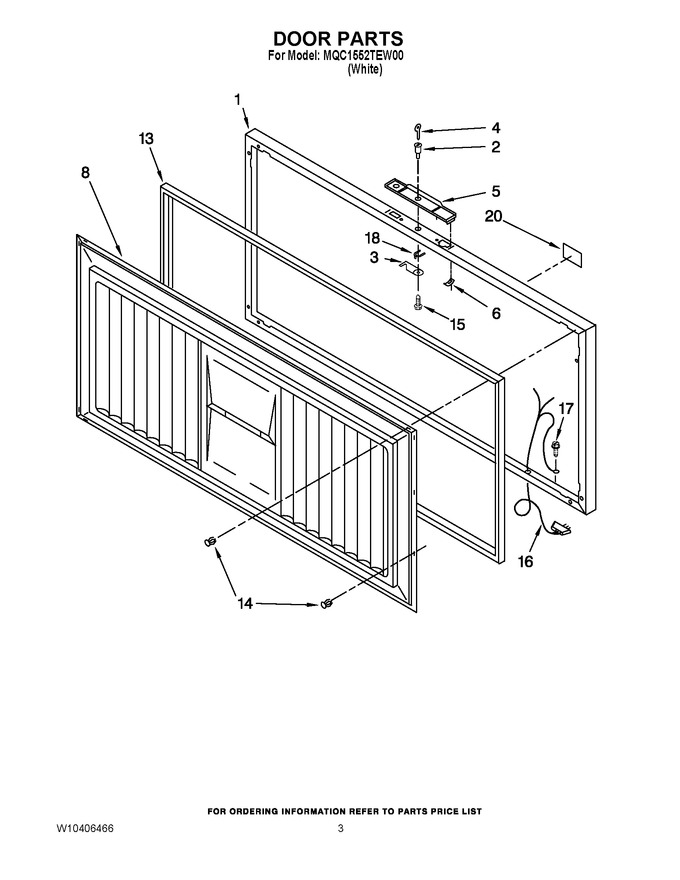

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4390902 | Exterior Door Panel (Replaces: 4-35652-302) |
|
$ 384.62 | |||||
| 2 | 3-35284-001 | Lock Kit |
|
$ 24.42 | |||||
| 3 | 4357289 | Hook Bolt, Lock |
|
$ 22.23 | |||||
| 4 | WP1-26355 | Key (Replaces: 1-26355) |
|
$ 9.76 | |||||
| 5 | 4-35663-032 | Handle |
|
$ 137.17 | |||||
| 6 | 4356306 | Clip, Oblong |
|
$ 7.36 | |||||
| 8 | 4356361 | Interior Door Panel |
|
- | |||||
| 13 | WP4-35260-005 | Gasket (Replaces: 4-35260-005) |
|
$ 287.65 | |||||
| 14 | 4356703 | Clip, Gasket |
|
$ 43.62 | |||||
| 15 | W11233072 | Screw (Replaces: 4356609) |
|
Immediately | $ 12.62 | ||||
| 16 | W10364532 | Harness, Wiring (lid) |
|
- | |||||
| 17 | WP488787 | Screw (Replaces: 488787) |
|
$ 9.52 | |||||
| 18 | 4356493 | Clip, Spring |
|
- | |||||
| 20 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 60.43 |
