02 - Backguard


03 - Maintop


04 - Burner


05 - Body


06 - Section


07 - Oven Door, Lit/optional


08 - Rotisserie Kit, Griddle

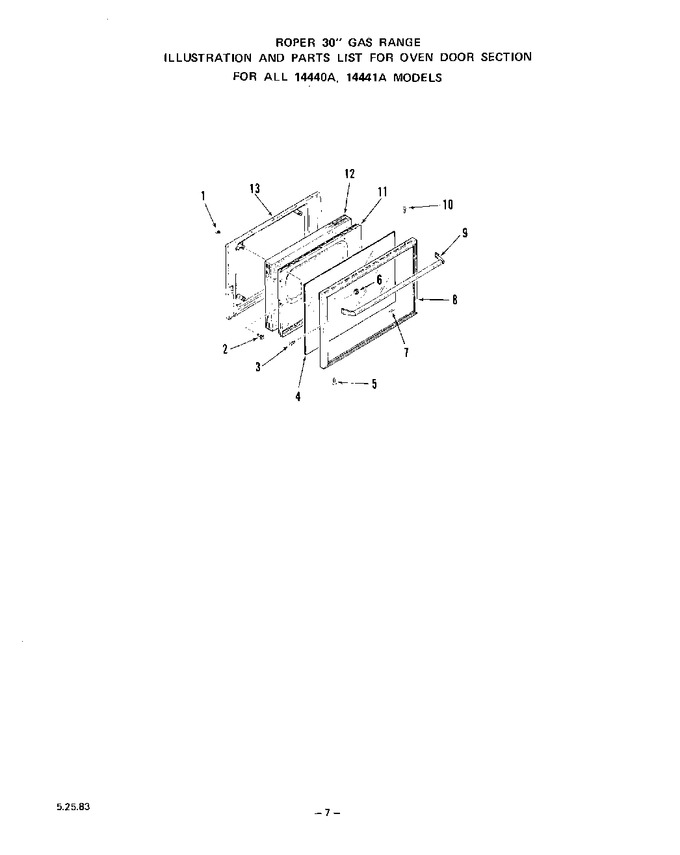

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100165		Plug Button (2 Required)   (Replaces: 306667)			Immediately	$ 50.62
2	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
3	319447		Screw 8-32 X 1/2``		Appelez-nous	-
4	320736		Glass-oven Door		Appelez-nous	-
5	102376		Screw 10-32 X 1/2``		Appelez-nous	-
6	239764		Keps Nut 8-32		Appelez-nous	-
7	112370		Cushion-door Glass		Appelez-nous	-
8	296473		Frame-door Glass		Appelez-nous	-
9	303342		Handle-oven Door		Appelez-nous	-
10	120855		Screw 6ax3/8``		Appelez-nous	-
11	320735		Retainer-oven Door Insulation		Appelez-nous	-
12	296142		Insulation-oven Door		Appelez-nous	-
13	1002100		Flue Collar Kit (optional)		Appelez-nous	-
13	324930		Installation & Reference Guide		Appelez-nous	-
13	324931		Operating Guide		Appelez-nous	-
13	324000		Gas Use & Care Guide		Appelez-nous	-
13	321121		Lining-oven Door		Appelez-nous	-
13	323283		Module		Appelez-nous	-
13	326176		Repair Parts Manual		Appelez-nous	-
	323284		Gas Valve Switches		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
