SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body

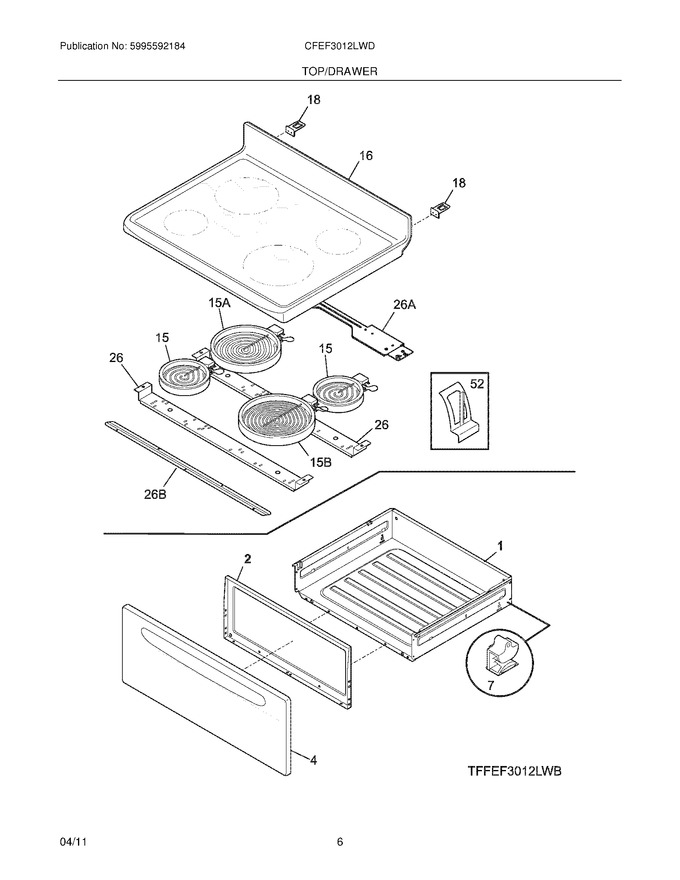

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304511288		Liner,drawer   (Replaces: 316284800)				$ 57.64
4	316231305		Panel,drawer ,white				$ 55.80
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316531984		Maintop,steel/glass ,white/black				$ 448.65
18	316580800		Bracket-hinge,main Top			Immediately	$ 9.86
26	5304500986		Channel,element Support ,(2)   (Replaces: 316427603)				$ 41.68
52	316461700		Clip,element Mtg				$ 12.05
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
26B	316214202		Bracket,chassis Support ,front				$ 25.41
F15	318178110		Element,surface ,6`` ,1200w ,(2) ,radiant   (Replaces: 318198846)			Immediately	$ 122.86
F15A	316281900		Element-surface,coil ,8 Inch ,2200w				$ 245.61
F15B	316135401		Element,surface ,9`` ,2500 W ,radiant			Immediately	$ 80.96
FNI	316580419		Harness,wiring ,surface Units				$ 191.86
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
