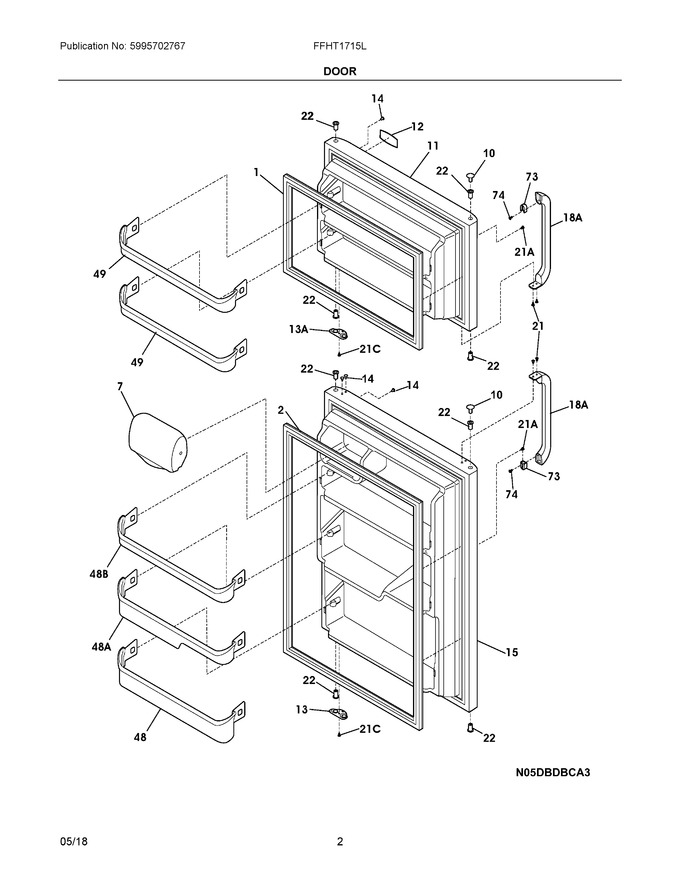

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241872501 | Gasket-frzr Door, White, Magnetic |
|
Immediately | $ 134.19 | ||||
| 2 | 241872504 | Gasket-refr Door, White, Magnetic |
|
Immediately | $ 183.39 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 36.41 | ||||
| 10 | 240381301 | Plug-button, White, Hinge Brg Hole, (2) |
|
Immediately | $ 18.95 | ||||
| 11 | 240420101 | Door, Frzr, White |
|
- | |||||
| 12 | 242062801 | Nameplate |
|
$ 11.65 | |||||
| 13 | 240312421 | Door Stop, White, Ref (Replaces: 240312403) |
|
$ 15.17 | |||||
| 14 | 240494001 | Plug-button, White |
|
Immediately | $ 18.20 | ||||
| 15 | 240420201 | Door, Refr, White |
|
$ 379.42 | |||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507146 | Bearing-hinge, Natural Color (Replaces: 240527101) |
|
Immediately | $ 7.59 | ||||
| 48 | 240535101 | Rack-door |
|
Immediately | $ 28.57 | ||||
| 49 | 240535001 | Rack-door |
|
Immediately | $ 48.20 | ||||
| 73 | 218396701 | Block-handle Mtg, Dovetail |
|
- | |||||
| 74 | 215503203 | Screw, Cr Pan Hd, 10-16 X 0.500 |
|
Immediately | $ 7.09 | ||||
| 13A | 240312414 | Door Stop, White, Frzr |
|
$ 19.13 | |||||
| 18A | 218428101 | Handle-door, White, W/block & Screw |
|
Immediately | $ 22.73 | ||||
| 21A | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 48A | 240383801 | Bin-door, Gallon |
|
Immediately | $ 55.90 | ||||
| 48B | 240383901 | Bin-door, 2-liter |
|
Immediately | $ 56.87 |
