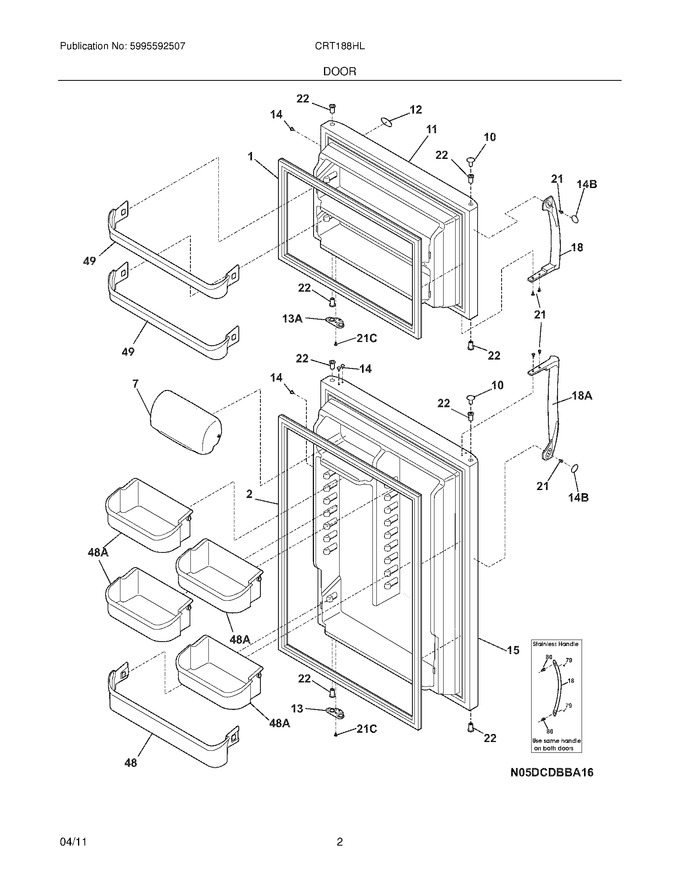

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240338313		Door,dairy ,clear			Immediately	$ 80.80
11	241623301		Door,frzr ,stainless Steel ,rh				$ 437.77
12	242115801		Nameplate		Appelez-nous	-
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 15.17
15	241623401		Door,refr ,stainless Steel ,rh				$ 539.03
18	240536819		Handle-door,stainless Steel				$ 131.40
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495804		Bin-door,pseudo ,frzr			Immediately	$ 43.29
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop,black ,frzr				$ 21.27
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
48A	240338201		Bin-door,gallon ,white			Immediately	$ 69.35
F1	241872509		Gasket-frzr Door,black ,magnetic			Immediately	$ 164.15
F2	241872512		Gasket-refr Door,black ,magnetic			Immediately	$ 165.39
NI	241601001		Wrench,allen		Appelez-nous	-
