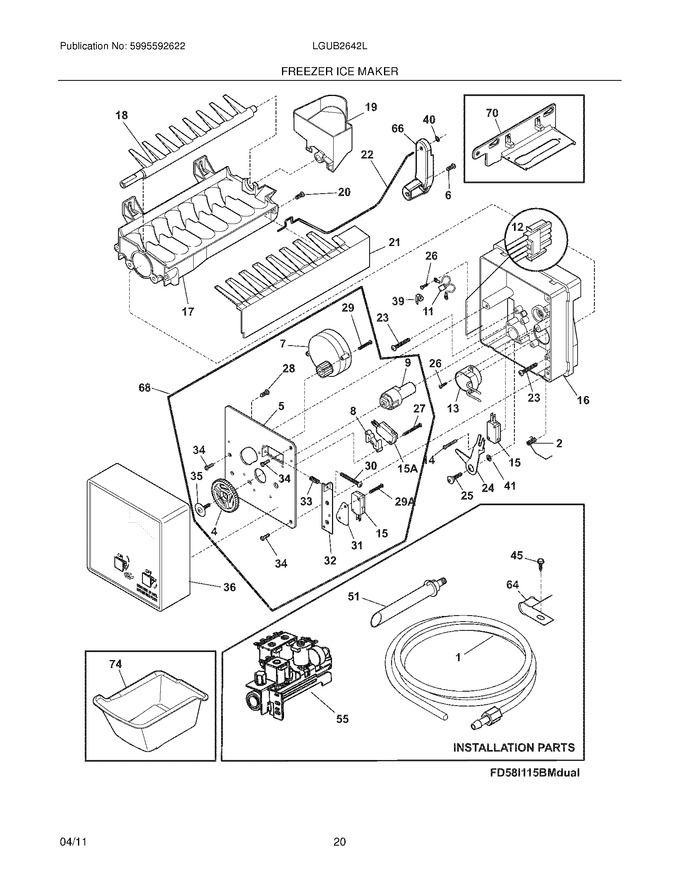

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241965901		Tube-water,formed ,64.86``				$ 33.71
2	5304469396		Spring-shutoff Arm,ice Maker				$ 15.49
4	5304469403		Gear				$ 19.99
5	5304469399		Mounting Plate		Appelez-nous	-
6	3206305		Screw-ground Wire,8-32 X 0.250		Appelez-nous	-
8	5304469404		Spacer-hold Switch		Appelez-nous	-
9	5304469402		Cam				$ 23.99
11	5304455695		Thermal Cutoff,ice Maker ,complete Assy		Appelez-nous	-
13	5304469387		Thermostat Assy,ice Maker				$ 111.48
14	5304469394		Screw,no.5-24 X 3/4		Appelez-nous	-
16	5304469379		Housing,control				$ 89.62
18	5304469384		Ejector-ice				$ 58.83
19	242051201		Cup-water Inlet,w/bearing				$ 13.28
20	5304469391		Screw,8-32 X 3/8		Appelez-nous	-
21	5304469378		Ice Stripper				$ 18.11
22	242051301		Shut-off Arm				$ 21.16
23	5304469392		Screw,mold-to-support ,(2)		Appelez-nous	-
24	5304469382		Lever Arm				$ 22.89
25	5304469397		Screw,lever Arm/sprt		Appelez-nous	-
26	5304469393		Screw		Appelez-nous	-
27	5304469410		Screw,hold Switch Mtg ,(2)		Appelez-nous	-
28	5304469414		Screw,no.8-32 X 1/4``		Appelez-nous	-
29	5304469409		Screw		Appelez-nous	-
30	5304469408		Screw-timing Adj,8-32 X 1.000		Appelez-nous	-
31	5304469389		Spacer-switch		Appelez-nous	-
32	5304469400		Plate-valve Switch		Appelez-nous	-
33	5304469401		Spring,timing Adjust				$ 11.29
34	5304469380		Screw,no.8-10x1/2		Appelez-nous	-
35	5304469411		Screw		Appelez-nous	-
36	5304469385		Cover-ice Maker				$ 43.73
39	5304469383		Clamp		Appelez-nous	-
40	5304458401		Clip-retainer		Appelez-nous	-
41	5304469381		Washer,flat		Appelez-nous	-
45	5304453923		Screw,hex Hd Wshr ,no.8-32 X 1/2		Appelez-nous	-
51	242098101		Tube-water,ice Mold Fill ,extension		Appelez-nous	-
64	5304453921		Clamp-cable		Appelez-nous	-
66	242060701		Bracket-ice Maker,shut Off Arm				$ 12.77
68	5304469398		Mounting Plate,assy				$ 189.79
70	242041701		Bracket-ice Maker				$ 70.88
74	5304518913		Container-ice   (Replaces: 242041901)				$ 202.48
29A	5304469412		Screw,no.4-24 X 3/4``				$ 6.84
F12	5304469390		Harness-wiring				$ 97.39
F15	5304469388		Switch-micro,2		Appelez-nous	-
F15A	5304469405		Switch-micro				$ 40.95
F17	5304469413		Mold-ice Maker,with Heater				$ 219.93
F55	242253002		Valve-water,4 Position ,115 V   (Replaces: 242102201)			Immediately	$ 244.75
F7	5304469407		Motor-ice Maker				$ 158.38
NI	5304469406		Insulator		Appelez-nous	-
NI	218709101		Screw,hex Head ,10-32 X 0.500				$ 6.38
NI	240363602		Screw-shoulder				$ 13.65
NI	242220204		Tube-water,brown/tan   (Replaces: 218976432)			Immediately	$ 40.32
NI	218976812		Tube-water Inlet,valve To I.m.		Appelez-nous	-
NI	241518001		Nut,1/2-20 ,nylon ,water Hose ,(2)				$ 23.86
NI	242082103		Tube-water				$ 22.68
NI	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
NI	240555002		Screw,hex Washer Head ,8-32t X 0.375   (Replaces: 241690701)			Immediately	$ 13.46
NI	242039701		Screw				$ 13.46
NI	242220204		Tube-water   (Replaces: 242082104)			Immediately	$ 40.32
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	241806601		Connector-water,straight   (Replaces: 242103001)			Immediately	$ 70.56
NI	5303918493		Ice Maker,radius Cube ,115 V ,service   (Replaces: 241798219)			Immediately	$ 231.95

    View Diagram in Separate Window       Print Part List
