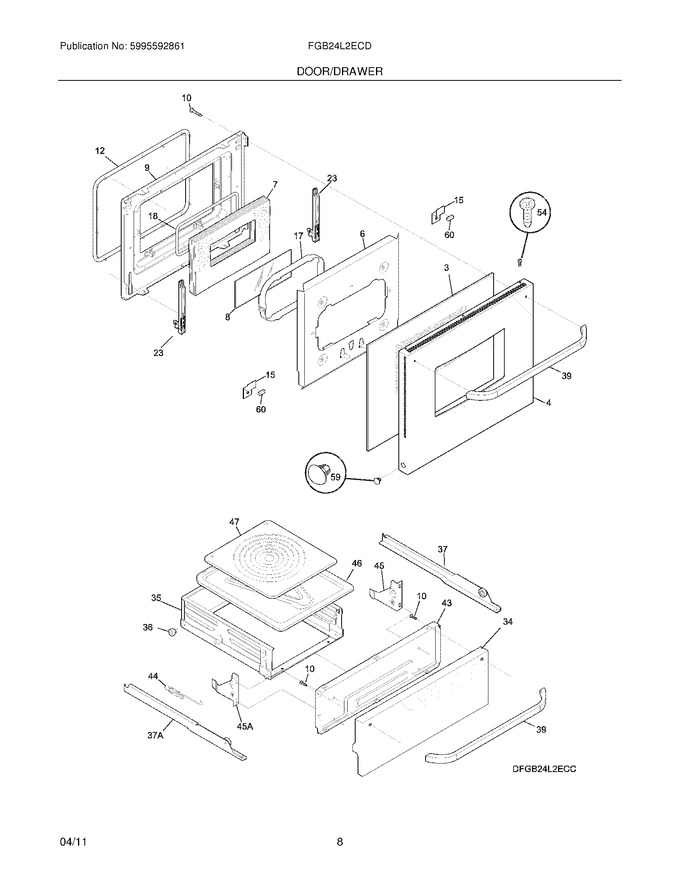

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318051521		Glass,oven Door ,black ,outer		Appelez-nous	-
4	318280014		Panel,exterior Door ,stainless		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	318285037		Insulation,oven Door		Appelez-nous	-
8	318381402		Glass-oven Door,heat Barrier ,lower Oven		Appelez-nous	-
9	318156615		Liner,oven Door		Appelez-nous	-
10	5303310510		Screw,10-24 X 0.625				$ 14.18
15	318091102		Bracket,glass Or Wire		Appelez-nous	-
17	318162603		Support,glass		Appelez-nous	-
18	318053204		Seal,rope ,lower Oven				$ 63.05
23	318567109		Hinge,oven Door		Appelez-nous	-
34	318328200		Panel,drawer ,stainless ,front		Appelez-nous	-
35	318107000		Drawer,broiler		Appelez-nous	-
36	318332200		Roller,nylon		Appelez-nous	-
37	3203722		Rail-drawer Rh		Appelez-nous	-
39	318362822		Handle Assembly,door ,black ,w/spacer				$ 104.05
43	318107804		Liner,broiler Door		Appelez-nous	-
44	318088300		Spring-broiler		Appelez-nous	-
45	318024400		Hinge-broiler,rh		Appelez-nous	-
46	318126200		Pan-broiler		Appelez-nous	-
47	318126300		Insert-broiler Pan		Appelez-nous	-
54	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
59	3202113		Plug,button		Appelez-nous	-
60	5303316982		Foam Seal,(2)		Appelez-nous	-
37A	3203723		Rail,drawer ,lh		Appelez-nous	-
45A	318024401		Hinge-broiler,lh		Appelez-nous	-
F12	5303316768		Seal-oven Door, Lower Oven		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	3201899		Washer,flat		Appelez-nous	-
NI	5304445498		Plug,button		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304414648		Screw,10-24 ,(2)   (Replaces: 5303308458)				$ 14.18
NI	5303323277		Screw (8-18x13/32)				$ 8.66
