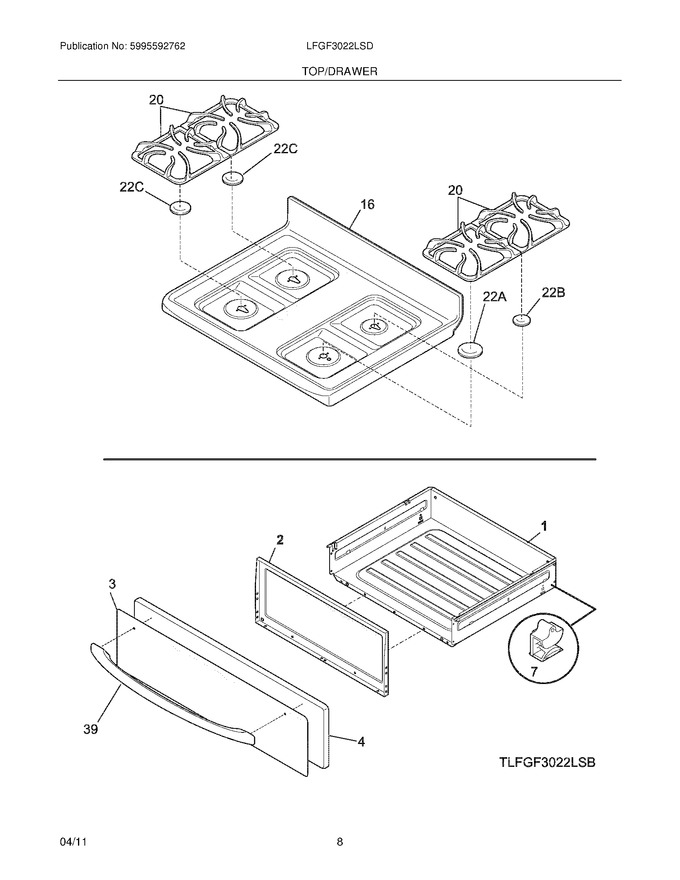

09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer,utility (Replaces: 316408703) |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527988 | Liner,drawer (Replaces: 316403200) |
|
Immediately | $ 26.54 | ||||
| 3 | 5303935344 | Overlay Assembly,drawer ,stainless ,w/tape |
|
- | |||||
| 4 | 316581600 | Drawer Panel,assy ,stainless ,w/ Overlay |
|
$ 141.17 | |||||
| 7 | 316407402 | Glide,drawer ,rear (Replaces: 316407400) |
|
Immediately | $ 9.86 | ||||
| 16 | 316254501 | Maintop,black |
|
$ 197.03 | |||||
| 20 | 316202405 | Grate,black |
|
$ 147.88 | |||||
| 39 | 316558201 | Handle,door ,stainless (Replaces: 316558200) |
|
$ 174.23 | |||||
| 22A | 316261904 | Cap,12k Burner ,black |
|
$ 46.36 | |||||
| 22B | 5304508441 | Cap,5k Burner ,black (Replaces: 316261704) |
|
Immediately | $ 35.04 | ||||
| 22C | 5304508442 | Cap,9.5k Burner ,black (Replaces: 316261804) |
|
Immediately | $ 36.55 | ||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5303288572 | Screw-handle Mtg |
|
- | |||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
