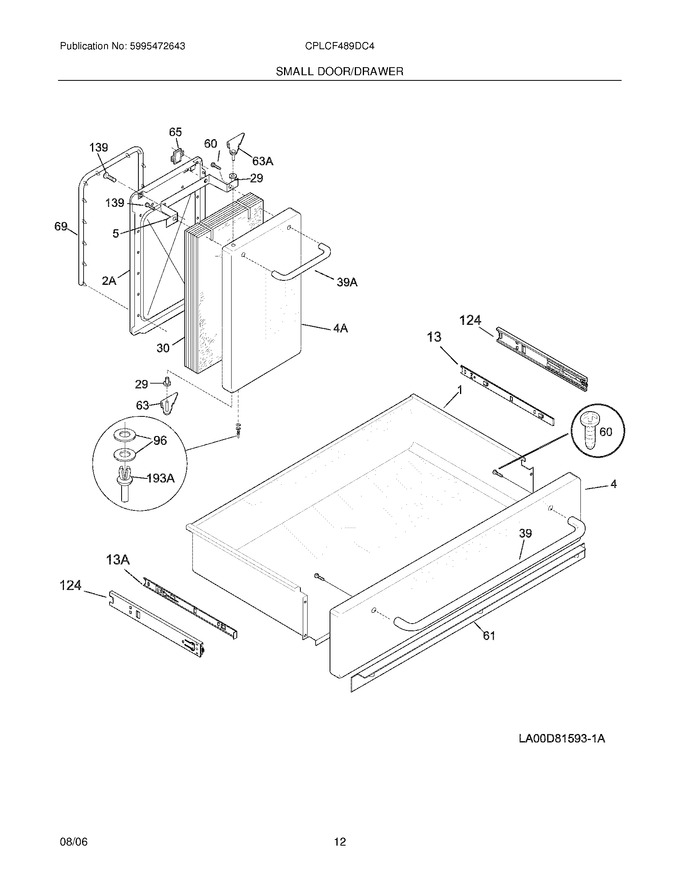

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
4	318158221		Panel,drawer				$ 433.86
5	318014511		Spacer,door Handle				$ 39.85
13	318259507		Glide,warmer ,inner Rh			Immediately	$ 69.01
29	318141800		Spacer,hinge Pin ,upper/lower				$ 14.49
30	318285016		Insulation,oven Door		Appelez-nous	-
39	318039801		Handle,door ,stainless Steel ,oven		Appelez-nous	-
60	240442708		Screw,handle Mtg ,10-32 X 3/4   (Replaces: 5304400794)				$ 8.34
61	318107700		Toeplate		Appelez-nous	-
63	318024508		Hinge,door ,lwr Small Oven ,lower				$ 133.72
65	318090220		Strike-door				$ 57.04
69	318053110		Seal,small Oven Door				$ 216.98
124	316105501		Glide,outer/rh & Lh ,(2)				$ 90.72
136	318180301		Bracket,box		Appelez-nous	-
13A	318259506		Glide,warmer ,inner Lh				$ 69.01
2A	318048221		Liner,inner Door ,small Oven		Appelez-nous	-
39A	318039802		Handle,door ,small Oven		Appelez-nous	-
4A	318009321		Panel,oven Door ,stainless ,small		Appelez-nous	-
63A	318024509		Hinge,door ,upr Small Oven				$ 118.28
F193	5303321106		Plug-button				$ 11.60
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	318229000		Baffle,small Door		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
