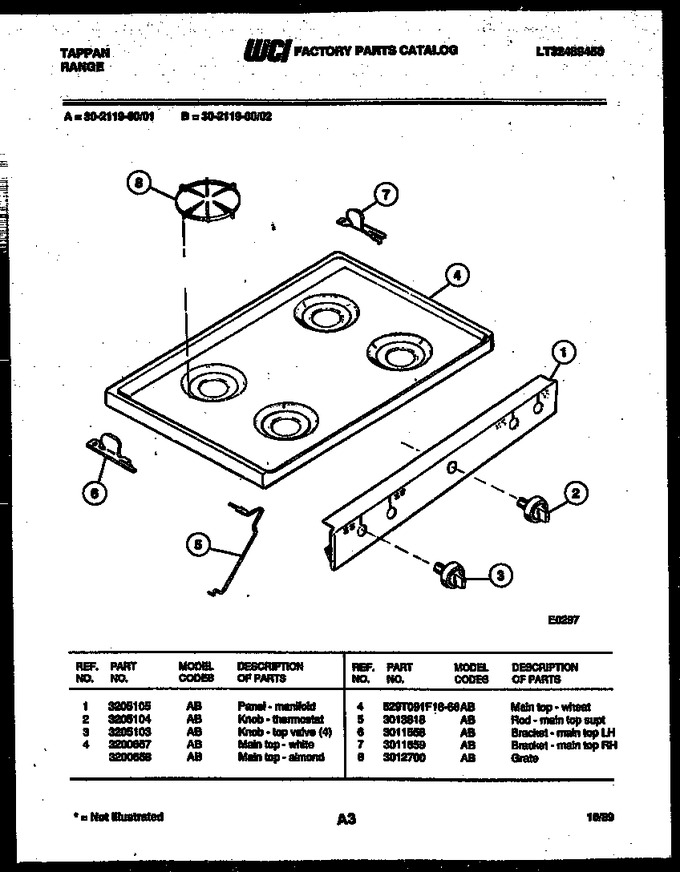

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205105 | Panel - Manifold |
|
- | |||||
| 2 | 3205104 | Knob - Thermostat |
|
- | |||||
| 3 | 3205103 | Knob, Top Valve, (4) |
|
- | |||||
| 4 | 529T091F18-66AB | Main Top - Wheat |
|
- | |||||
| 4 | 3200658 | Main Top - Almond |
|
- | |||||
| 4 | 3200657 | Main Top, White |
|
- | |||||
| 5 | 3013818 | Rod - Maintop Supt. |
|
- | |||||
| 6 | 3011558 | Bracket-main Top Lh |
|
- | |||||
| 7 | 3011559 | Bracket-main Top Rh |
|
- | |||||
| 8 | 3012700 | Grate |
|
- |
