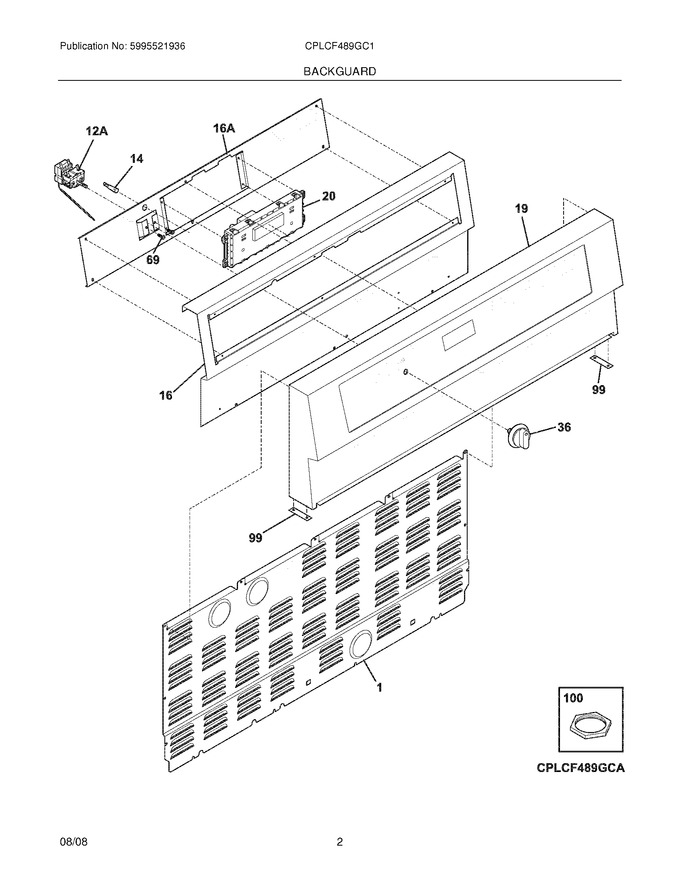

03 - Backguard


05 - Burner


07 - Body


09 - Maintop


11 - Drawer/small Door


13 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318086916		Shield,backguard		Appelez-nous	-
16	318404003		Panel,control Mtg.		Appelez-nous	-
36	318099205		Knob,thermostat		Appelez-nous	-
69	5303288565		Screw, 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
100	5303325982		Nut,keps ,10-32		Appelez-nous	-
16A	318182424		Panel,switch Mtg		Appelez-nous	-
F12A	318183000		Thermostat,oven				$ 403.49
F14	318044829		Light,indicator ,clear				$ 54.67
F19	318534205		Panel,control Assy ,stainless ,w/touch Pad		Appelez-nous	-
F20	316462834		Controller,electronic ,es530				$ 465.99
FNI	318199771		Safety Thermostat Assy,w/harness ,and Connector		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
