Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

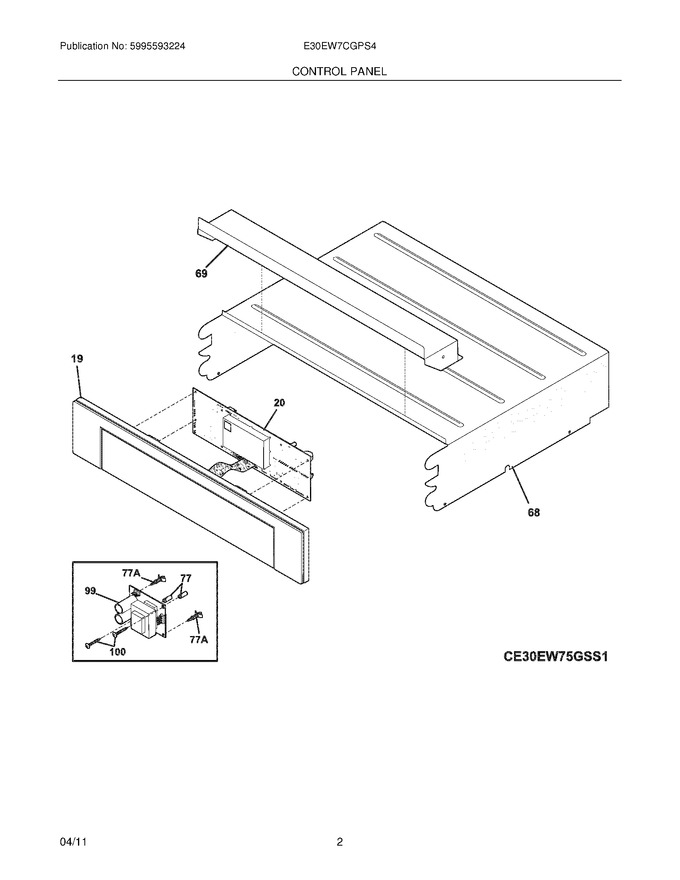

19	318244837		Control Panel,assembly ,w/stainless Trm				$ 403.66
68	318237220		Housing,top/control		Appelez-nous	-
69	318237320		Shield,control		Appelez-nous	-
77	318293702		Spacer,control				$ 16.22
100	5303297477		Screw,6-20 X 1 1/4				$ 15.17
77A	316114100		Spacer				$ 60.96
F20	316576630		Clock/timer,electronic ,es630				$ 431.87
F99	316535200		Board,power Supply ,8v ,(2)				$ 408.36
FNI	318532112		Harness,wiring ,communication ,10 Connectors		Appelez-nous	-
NI	131892100		Screw,control Mtg ,6-32 X .25 ,(5)   (Replaces: 316524400)		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
