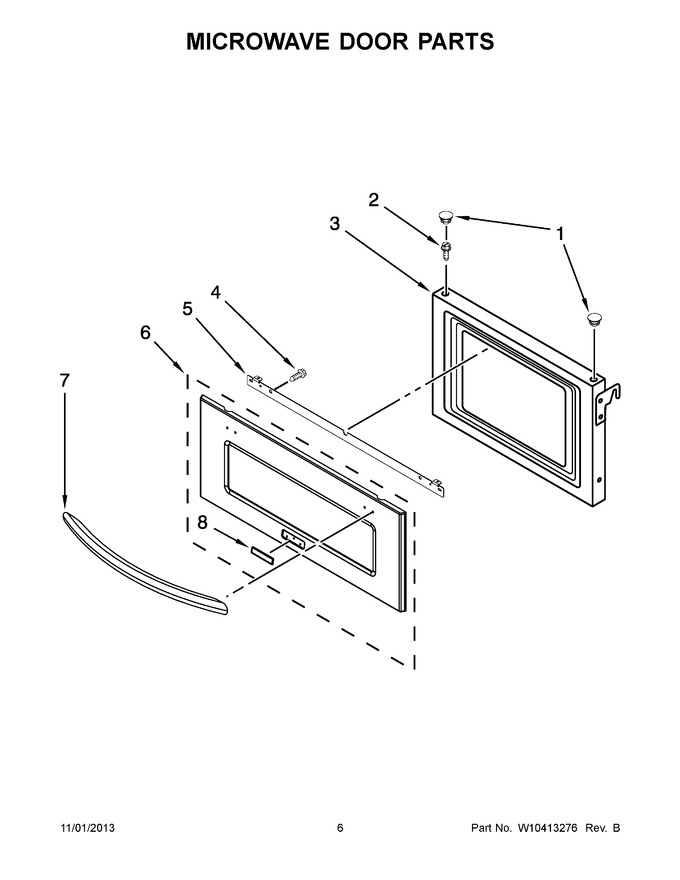

04 - Microwave Door Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 10.58
2	WP7101P246-60		Screw   (Replaces: W10143304)				$ 6.98
3	W10120488		Door, Microwave Inner				$ 204.23
4	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
5	8303033		Bracket, Handle				$ 39.61
6	W10237363		Glass Assembly				$ 306.88
7	8303775SS		Handle (stainless)		Appelez-nous	-
8	WPW10243391		Nameplate (stainless)   (Replaces: W10243391)				$ 49.98
