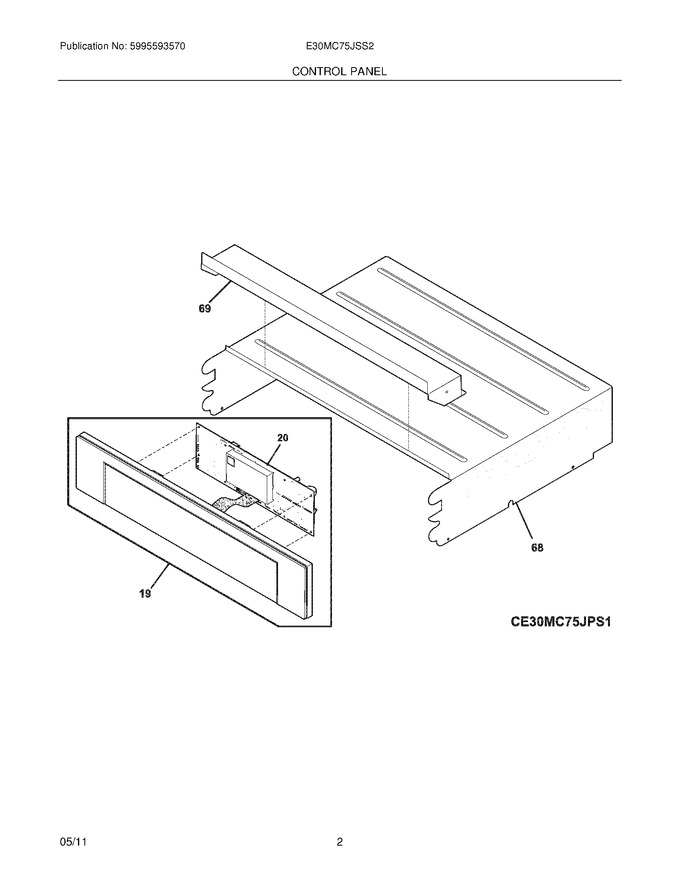

03 - Control Panel
05 - Microwave
07 - Lower Oven
09 - Doors
10 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 68 | 318237220 | Housing,top/control |
|
- | |||||
| 69 | 318237321 | Shield,control |
|
- | |||||
| F19 | 318244838 | Control Panel,assembly ,w/stainless Trm |
|
- | |||||
| F20 | 316570420 | Board,control ,uib ,microcombi |
|
- | |||||
| FNI | 318532194 | Harness,wiring ,display/control ,to Relay Board |
|
$ 115.58 | |||||
| NI | 131892100 | Screw,control Mtg ,6-32 X .25 ,(5) (Replaces: 316524400) |
|
- | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5304436875 | Screw,8-18 X 1/2 ,black ,(3) |
|
$ 14.41 |
