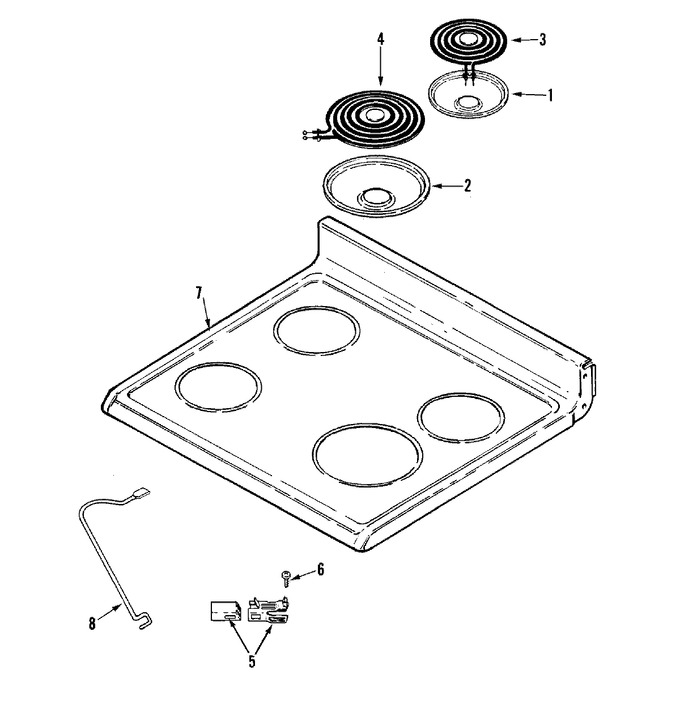

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 10 |
|
Immediately | $ 12.05 | |||
| 1 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 74001212) | 10 |
|
Immediately | $ 12.05 | |||
| 2 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 74001213) | 10 |
|
Immediately | $ 15.56 | |||
| 3 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 12 |
|
Immediately | $ 112.28 | |||
| 3 | WP660532 | Element, Surface 6``x4t B (Replaces: Y04000034) | 10 |
|
Immediately | $ 36.90 | |||
| 4 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 12 |
|
Immediately | $ 165.96 | |||
| 4 | WP660533 | Element, Surface 8``x5t, B (Replaces: Y04000033) | 10 |
|
Immediately | $ 39.47 | |||
| 5 | 12001676 | Receptacle Assy. | 10 |
|
Immediately | $ 28.45 | |||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 7 | 74005063 | Top, Main (bsq) | 10 |
|
- | ||||
| 8 | 74004084 | Prop Rod | 10 |
|
- |
