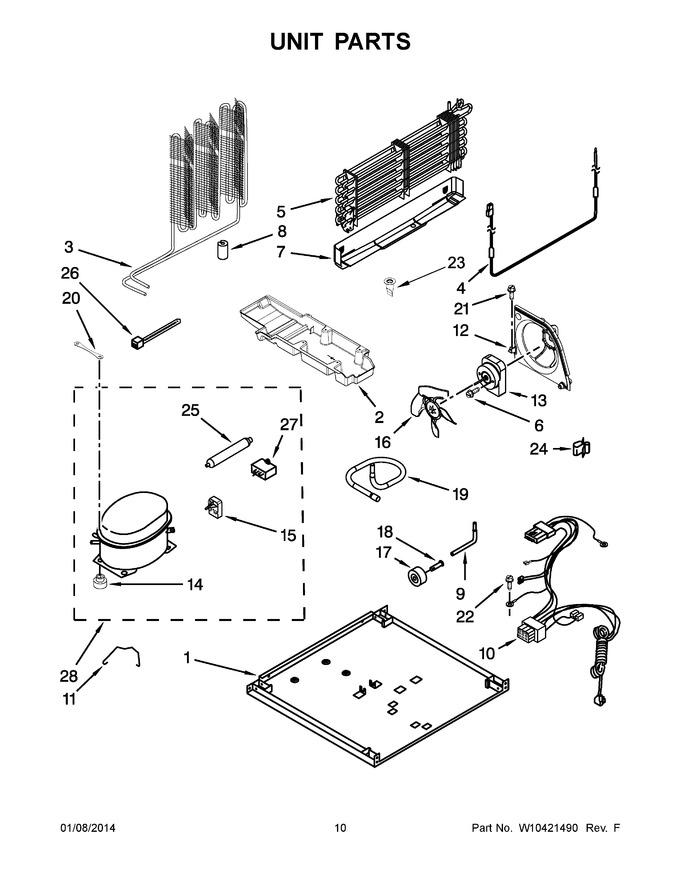

06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11396825 | Baseplate (Replaces: W10300118) |
|
$ 140.15 | |||||
| 2 | W10890667 | Tray, Drain (Replaces: W10466213) |
|
$ 151.95 | |||||
| 3 | WPW10414237 | Condenser (Replaces: W10414237) |
|
$ 302.00 | |||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 257.91 | ||||
| 5 | WPW10314205 | Assembly, Evaporator (Replaces: W10314205) |
|
$ 361.39 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| 8 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
Immediately | $ 8.09 | ||||
| 9 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 108.61 | |||||
| 10 | W10405935 | Assembly, Unit Wire |
|
$ 154.68 | |||||
| 11 | W10204187 | Strap, Bale |
|
- | |||||
| 12 | WP2315541 | Baffle, Air (Replaces: 2315541) |
|
Immediately | $ 87.99 | ||||
| 13 | WP2188874 | Motor, Condenser (Replaces: W10508362) |
|
Immediately | $ 124.18 | ||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 7.55 | |||||
| 15 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 93.67 | ||||
| 16 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 99.82 | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 30.52 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2221797) |
|
Immediately | $ 19.12 | ||||
| 19 | W10466682 | Tube, Suction |
|
$ 44.33 | |||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 21 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 22 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 23 | W11190084 | Valve, Drain (Replaces: W10519112) |
|
Immediately | $ 65.56 | ||||
| 24 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 25 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 57.13 | ||||
| 26 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 27 | WPW10662129 | Capacitor (Replaces: 2169373) |
|
Immediately | $ 58.86 | ||||
| 28 | W10309988 | Compressor (also Order 876765 Tube Kit) (Replaces: W10253005) |
|
Immediately | $ 587.29 | ||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 18.65 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 3.88 Oz. (r134a) |
|
- |
