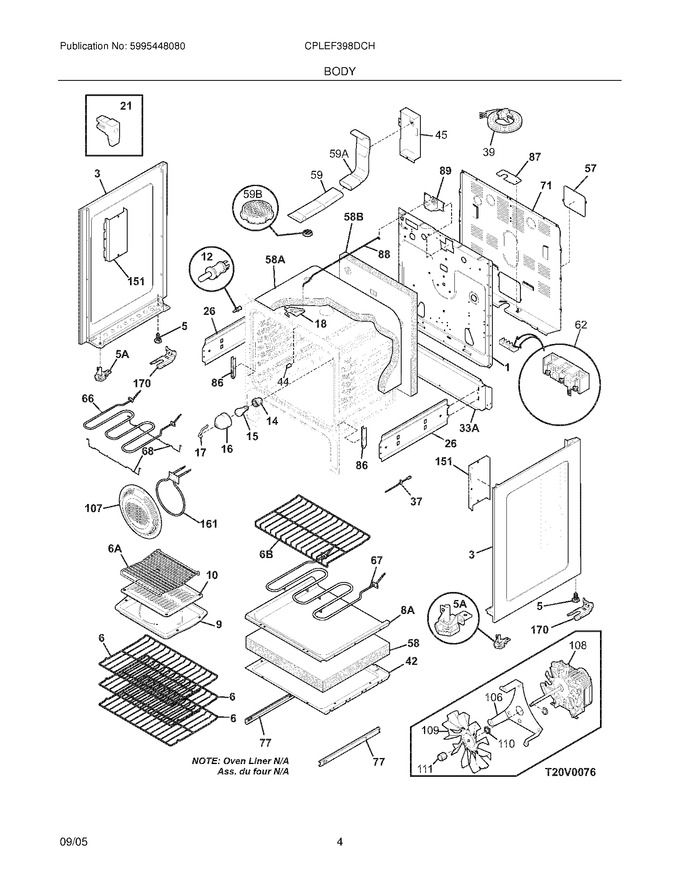

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401800		Panel,main Back		Appelez-nous	-
3	316400144		Panel,bodyside ,black ,rh   (Replaces: 316400118)			Immediately	$ 134.69
3	316400145		Panel,bodyside ,black ,lh   (Replaces: 316400119)			Immediately	$ 133.93
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316496201		Rack,oven   (Replaces: 316404501)			Immediately	$ 103.48
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
12	316445500		Switch,oven Light ,door Frame			Immediately	$ 54.74
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	316408000		Clip,bodyside				$ 18.20
26	316409000		Shield,warmer Side ,(2)				$ 44.47
42	316400702		Shield,wool ,lower		Appelez-nous	-
44	316246501		Spacer,oven Door				$ 12.13
45	316234100		Shield,wire ,vent Tube				$ 70.16
57	316422400		Cover,access		Appelez-nous	-
58	316403801		Insulation,oven Sump		Appelez-nous	-
59	316208201		Tube,oven Vent ,lower				$ 77.26
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	316430900		Element,broil ,4000w			Immediately	$ 256.20
67	316415900		Element,bake ,3500w ,6 Pass			Immediately	$ 259.25
68	316429100		Support,element ,broil				$ 62.51
71	316422300		Shield,rear Wall		Appelez-nous	-
77	316456700		Glide,warmer Drawer ,outer/rh & Lh ,(2)   (Replaces: 316415100)			Immediately	$ 60.96
86	316441300		Receptacle,hinge				$ 21.97
87	316081202		Bracket,cable Mtg				$ 4.96
88	316203500		Rod,auto Latch				$ 72.30
106	316404100		Bracket,motor Mtg.				$ 63.70
107	316026701		Cover,fan				$ 408.89
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 29.11
110	316008401		Washer,flat   (Replaces: 316136500)				$ 11.34
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
151	316404600		Shield,bodyside				$ 49.30
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
170	316112500		Template,anti-tip				$ 3.55
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 18.91
33A	316402100		Shield,rear Wall ,lower				$ 47.30
58A	316406604		Insulation,oven Wrapper   (Replaces: 316406600)			Immediately	$ 69.77
58B	316406500		Insulation,oven Back				$ 88.60
59A	316208304		Tube,oven Vent ,upper				$ 80.09
59B	316247300		Catalyst,oven Vent ,ceramic				$ 99.23
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316407201)			Immediately	$ 15.08
6A	318219500		Rack,broiler Pan		Appelez-nous	-
6B	316425400		Rack,oven				$ 149.13
8A	316411102		Base,bake Element				$ 123.27
F108	5304467898		Motor,fan   (Replaces: 316415800)			Immediately	$ 225.67
F161	316211603		Element,convection Fan ,350 W				$ 255.86
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F37	316490001		Probe,oven Temp   (Replaces: 316217001)			Immediately	$ 68.80
F39	318113108		Cord,electric		Appelez-nous	-
F89	316464301		Motor,latch/lock   (Replaces: 316415401)				$ 169.25
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021132		Screw,8-18 X 11/16 ,black				$ 12.89
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316418901		Screw,trilobe ,10-32 X 5/16``				$ 14.18
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	316443000		Wiring Harness,main				$ 132.46
NI	5303321321		Paint,touch-up ,black   (Replaces: 5303305345)			Immediately	$ 21.97
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
