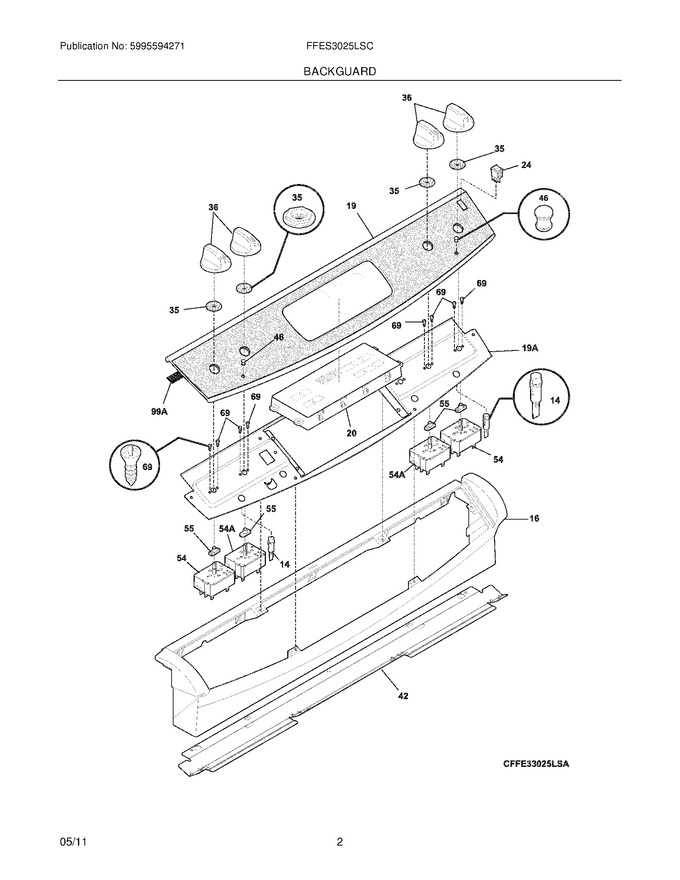

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299102		Console,assy. ,black				$ 494.96
19	318935400		Control Panel Assembly,stainless/black ,w/overlay				$ 478.44
35	318183100		Support,glass ,black				$ 9.35
36	316543810		Knob,control ,black				$ 46.79
42	318574701		Support,control Panel ,black				$ 62.69
46	318228301		Lens,indicator Light				$ 11.29
55	318402901		Bushing,switch				$ 17.72
69	5304480396		Screw,8-32 X 3/8`` ,(4)				$ 11.34
19A	9910999SI		Panel,control Mtg.   (Replaces: 318224401)		Appelez-nous	-
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318293901		Light,indicator ,125v ,(2)				$ 53.66
F20	318185731		Clock/timer,electronic ,es300 ,black ,w/overlay				$ 535.88
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
F54	318293830		Switch,infinite ,(2)			Immediately	$ 94.36
F54A	318293831		Switch,surface Element ,large			Immediately	$ 92.69
FNI	318228875		Harness,wiring ,main ,backguard		Appelez-nous	-
FNI	318231880		Harness,wiring ,jumper				$ 14.18
FNI	318224875		Harness,wiring ,timer				$ 80.33
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5304447071		Clip,console ,(2)		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	316419141		Overlay,clock ,black ,es300			Immediately	$ 56.87

    View Diagram in Separate Window       Print Part List
