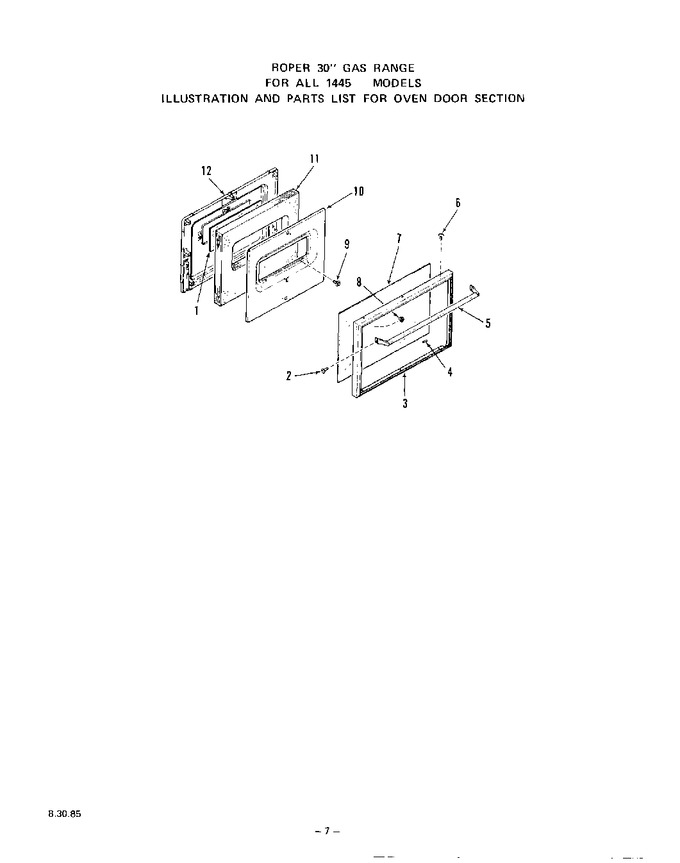

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	326010		Glass-inner Oven Door		Appelez-nous	-
2	319447		Screw 8-32 X 1/2``		Appelez-nous	-
3	326002		Frame-oven Door		Appelez-nous	-
4	112370		Cushion (5 Req)		Appelez-nous	-
5	303342		Handle		Appelez-nous	-
6	316849		Screw-10-32x1/2``		Appelez-nous	-
7	326367		Glass-outer Oven Door		Appelez-nous	-
8	239764		Nut-keps 8-32		Appelez-nous	-
9	104520		Screw 10-32 X 17/32``		Appelez-nous	-
10	325996		Retainer-oven Door Insulation		Appelez-nous	-
11	325999		Insulation		Appelez-nous	-
12	331581		Lining-oven Door (14451a Models)		Appelez-nous	-
12	327254		Lining-oven Door (14450a Models)		Appelez-nous	-
