01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer
04 - Oven/base
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

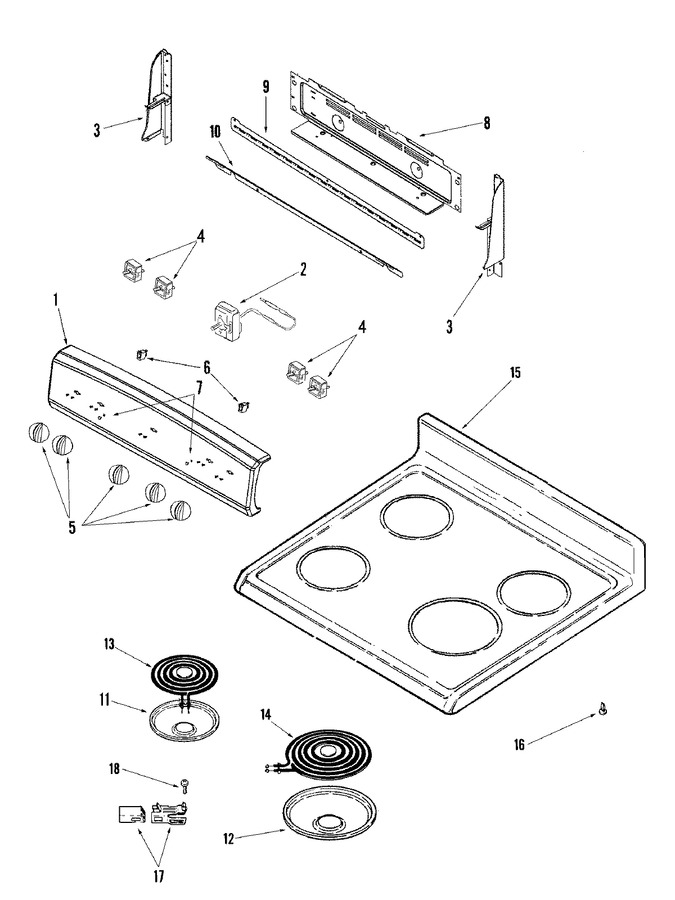

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74011438 | Panel, Backguard (wht) | 10 |
|
- | ||||
| 2 | 74010330 | Thermostat | 10 |
|
- | ||||
| 3 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 3 | WP98008544 | Screw (wht) (Replaces: 74009540) | 10 |
|
$ 11.89 | ||||
| 3 | 74010713 | Support, Backguard (lt-wht) | 10 |
|
- | ||||
| 3 | 74010212 | Support, Backguard (rt-wht) | 10 |
|
- | ||||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 5 | 74008733 | Knob (wht) | 10 |
|
$ 6.65 | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 8 | 74010983 | Cover, Rear Wire | 10 |
|
- | ||||
| 8 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 9 | 74009701 | Shield, Rear Sight | 10 |
|
- | ||||
| 10 | 74009978 | Shield, Wire | 10 |
|
- | ||||
| 10 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 11 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 74001212) | 10 |
|
Immediately | $ 12.05 | |||
| 11 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 10 |
|
Immediately | $ 12.05 | |||
| 12 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 74001213) | 10 |
|
Immediately | $ 15.56 | |||
| 13 | WPW10345407 | Element, Surface (6``) (Replaces: 74007158) | 10 |
|
Immediately | $ 141.79 | |||
| 14 | WP9761346 | Element, Surface (8``-5t) (Replaces: 74007159) | 10 |
|
Immediately | $ 94.16 | |||
| 15 | 74003428 | Top, Main (wht) | 10 |
|
- | ||||
| 16 | W11189172 | Glide, Main Top (Replaces: 74004558) | 10 |
|
Immediately | $ 15.09 | |||
| 17 | WP74007474 | Receptacle Assy (Replaces: 74007474) | 10 |
|
Immediately | $ 129.78 | |||
| 18 | WP74004005 | Screw, 6-32 X 5/16`` (Replaces: 74004005) | 10 |
|
$ 6.95 |
