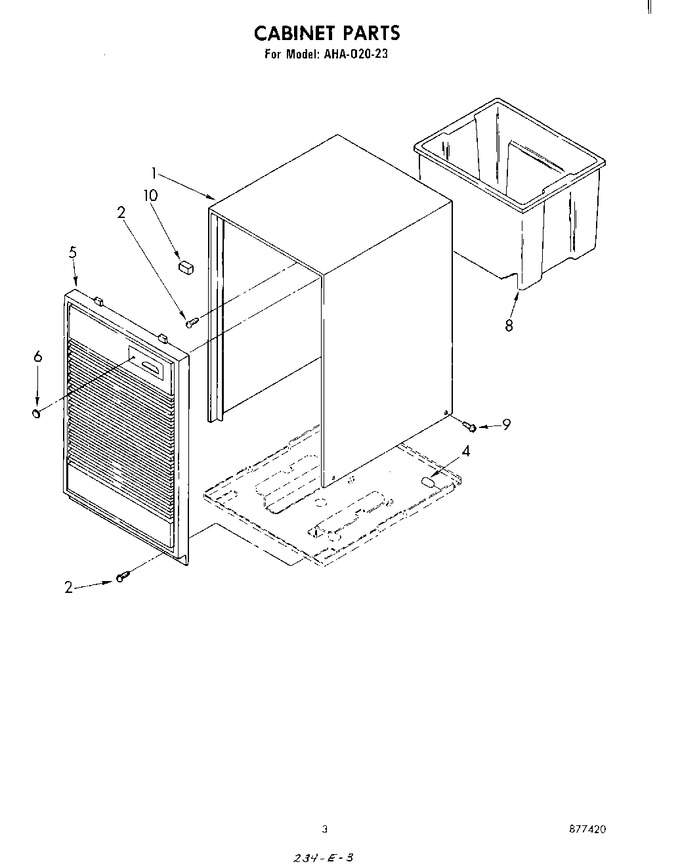

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	998821		Cabinet		Appelez-nous	-
2	WPW10141625		Screw, Tc 8-32 (rd. Cross Hd.)   (Replaces: 489104)				$ 22.22
4	998869		Thread Cap		Appelez-nous	-
5	998844		Grille, Front		Appelez-nous	-
6	998846		Lens, Light		Appelez-nous	-
8	998801		Pan, Condensate		Appelez-nous	-
9	489016		Screw, Tc 8-32 X 3/8 (6)		Appelez-nous	-
10	877420		List, Repair Parts		Appelez-nous	-
10	WP16123		Washer, Condensate Pan   (Replaces: 647338)				$ 8.16
10	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
10	799351		Thinner (1 Gal.)		Appelez-nous	-
10	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
10	505168		Tape, No Drip		Appelez-nous	-
10	978026		Valve, Access (5/16``)			Immediately	$ 134.49
10	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
10	978028		Valve, Access (1/2)		Appelez-nous	-
10	978029		Valve Access (5/8``)				$ 93.85
10	978030		Valve, Access (3/4``)				$ 137.25
10	949142		Sheet, Service Tech		Appelez-nous	-
10	998866		Guide, Use & Care		Appelez-nous	-
10	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
10	948584		Spacer, Block		Appelez-nous	-
10	646753		Cup, Condensate Pan		Appelez-nous	-
