SELECT A DIAGRAM

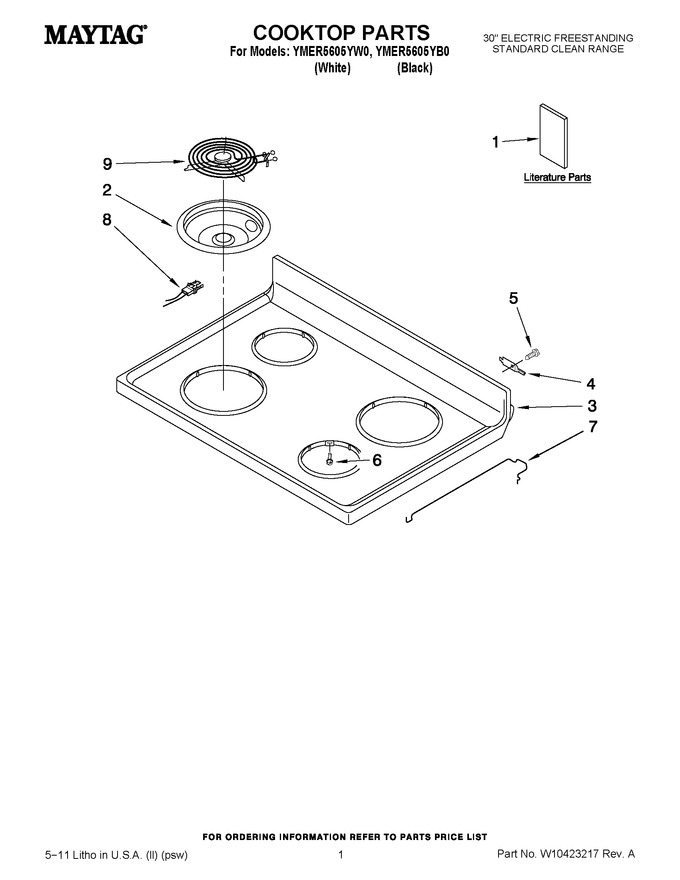

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10361707 | Owners Manual |
|
- | |||||
| 1 | W10361708 | Tech Sheet (english) |
|
- | |||||
| 1 | W10361709 | Tech Sheet (french) |
|
- | |||||
| 1 | W10196159 | Instructions, Installation |
|
- | |||||
| 1 | 9757142 | Template, Anti-tip (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template, Anti-tip (english/french) |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | WPW10196406 | 6`` Chrome (Replaces: W10196406) |
|
Immediately | $ 12.05 | ||||
| 2 | WPW10196405 | 8`` Chrome (Replaces: W10196405) |
|
Immediately | $ 15.56 | ||||
| 3 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 359.41 | |||||
| 3 | 8195534 | Cooktop (black) (Replaces: 3186233) |
|
$ 437.09 | |||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 6 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.04 | |||||
| 7 | WP3195812 | Rod, Support (Replaces: 3195812) |
|
Immediately | $ 7.48 | ||||
| 8 | WPW10295595 | Receptacle, Elmnt (Replaces: W10335181) |
|
Immediately | $ 140.45 | ||||
| 9 | W11168414 | Element, Surface (6``) (Replaces: W10259870) |
|
Immediately | $ 132.42 | ||||
| 9 | W11161939 | Element, Surface (8``) (Replaces: W10259867) |
|
Immediately | $ 144.54 |
