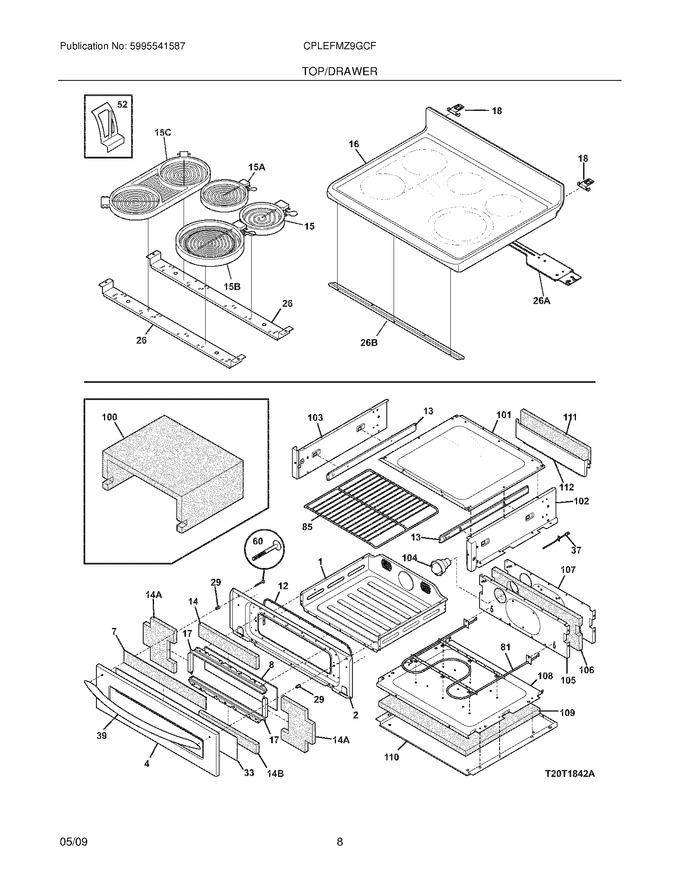

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316414101		Drawer,mini Oven				$ 70.98
2	316409803		Liner,drawer ,mini Oven ,w/ Window				$ 36.44
4	316432115		Panel,drawer ,stainless ,front		Appelez-nous	-
7	316437200		Insolator,heat ,drawer Front		Appelez-nous	-
8	316431901		Glass,inner Door ,mini Oven				$ 52.36
12	316410700		Seal,door ,mini Oven				$ 50.35
13	316449800		Glide,drawer ,mini Oven ,(2)		Appelez-nous	-
14	316414202		Insulation,door Top ,mini Oven				$ 12.08
16	316456217		Main Top,smooth Top ,black		Appelez-nous	-
17	316431801		Spacer,glass ,mini Oven ,(2)		Appelez-nous	-
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
26	316427600		Channel,element Support ,(2)		Appelez-nous	-
29	316429000		Spacer,handle ,(2)		Appelez-nous	-
33	316432000		Glass,drawer ,front				$ 44.37
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
52	316461700		Clip,element Mtg				$ 12.05
60	316001015		Screw,waf Hd Sq ,10-24 X 1.25 ,(2) ,handle Mtg				$ 9.45
85	316411000		Rack,mini Oven				$ 67.15
100	316410900		Insulation,wrapper ,mini Oven		Appelez-nous	-
101	316410201		Panel,top ,mini Oven		Appelez-nous	-
102	316431201		Panel,oven Side ,rh ,mini Oven		Appelez-nous	-
103	316431203		Panel,oven Side ,lh ,mini Oven		Appelez-nous	-
104	316431501		Light Assembly,mini Oven				$ 61.36
105	316431303		Panel,main Back ,mini Oven		Appelez-nous	-
106	316431400		Insualtion,oven Back ,mini Oven		Appelez-nous	-
107	316431307		Shield,main Back ,mini Oven		Appelez-nous	-
108	316410101		Panel,bottom ,mini Oven		Appelez-nous	-
109	316410800		Insulation,floor ,mini Oven		Appelez-nous	-
110	316410400		Shield,floor ,mini Oven		Appelez-nous	-
14A	316414201		Insulation,door Sides ,mini Oven ,(2)				$ 12.08
14B	316414203		Insulation,door Bottom ,mini Oven				$ 12.02
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
26B	316214202		Bracket,chassis Support ,front				$ 25.41
F15	318178110		Element,surface ,6`` ,1200 W ,(2)   (Replaces: 318198830)			Immediately	$ 122.86
F15A	140273621015		Element,surface ,warmer ,100 W   (Replaces: 318198832)			Immediately	$ 35.77
F15B	316282100		Element Surface Dual,surface ,1700/2700w,dual Radiant   (Replaces: 318198934)			Immediately	$ 249.27
F15C	316280701		Element,double 6`` ,surface ,4400w ,w/bridge				$ 273.34
F37	316490001		Probe,oven Temp ,mini Oven			Immediately	$ 68.80
F81	316413902		Element,bake ,mini Oven				$ 166.09
FNI	316510653		Harness-wiring,surface		Appelez-nous	-
FNI	316416913		Harness, Mini Oven ,to Probe				$ 18.66
NI	316440900		Thermostat-safety				$ 46.26
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
