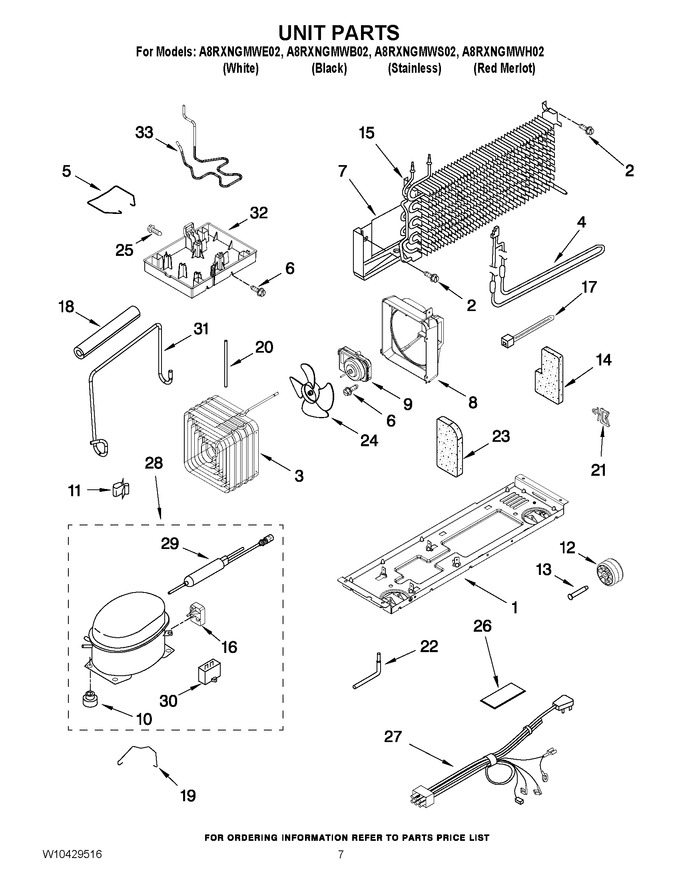

04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10222450 | Support Plate, Compressor (Replaces: W10222450) |
|
$ 125.81 | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 3 | WP2264004 | Condenser (Replaces: 2264004) |
|
$ 178.25 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 84.33 | ||||
| 5 | 2264835 | Clip, Condenser |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 9.95 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | W10358308 | Air Baffle |
|
$ 129.64 | |||||
| 9 | W11578915 | Motor, Condenser (Replaces: 2188875) |
|
Immediately | $ 64.28 | ||||
| 10 | WP2163786 | Grommet (service) (Replaces: 2222084) |
|
$ 7.16 | |||||
| 11 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 12 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 13 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 6.47 | |||||
| 14 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 15 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 285.62 | ||||
| 16 | 2320151 | Start-device, Combination (start Relay And Overload) (service) |
|
$ 163.00 | |||||
| 16 | WP2320150 | Start Device, Combination (start Relay And Overload) (production) (Replaces: W10330834) |
|
Immediately | $ 80.51 | ||||
| 17 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.11 | |||||
| 18 | 2264838 | Sleeve |
|
$ 79.10 | |||||
| 19 | 2263628 | Bale Strap |
|
- | |||||
| 20 | 2264278 | Tube, Drain |
|
$ 68.37 | |||||
| 21 | 2266467 | Clip-harness |
|
- | |||||
| 22 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 93.10 | |||||
| 23 | 2262192 | Wedge-evaporator |
|
- | |||||
| 24 | 2264129 | Fan Blade |
|
Immediately | $ 94.28 | ||||
| 25 | WP489489 | Screw (Replaces: 2264841) |
|
$ 5.82 | |||||
| 26 | 2266360 | Shield-electrical |
|
- | |||||
| 27 | WPW10151677 | Wire Assy. Unit (Replaces: W10151677) |
|
$ 117.35 | |||||
| 28 | W10309988 | Compressor (includes Items 10, 16, 29 & 30) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: 2320132) |
|
Immediately | $ 503.39 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 27.70 | ||||
| 29 | W10843121 | Drier (production) (Replaces: W10190413) |
|
Immediately | $ 47.31 | ||||
| 30 | WPW10662129 | Capacitator (service) (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 31 | W10209727 | Extension, Tube-heat |
|
$ 99.38 | |||||
| 32 | WP2263928 | Evaporating Tray (Replaces: 2263928) |
|
$ 127.73 | |||||
| 33 | W10209728 | Tube, Discharge (incl.pre Cooler) |
|
$ 106.23 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 117.64 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 82.22 | ||||
| NI | N/P | Refrigerant Charge (3.75 Ozs. (r134a)) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 19.48 |
