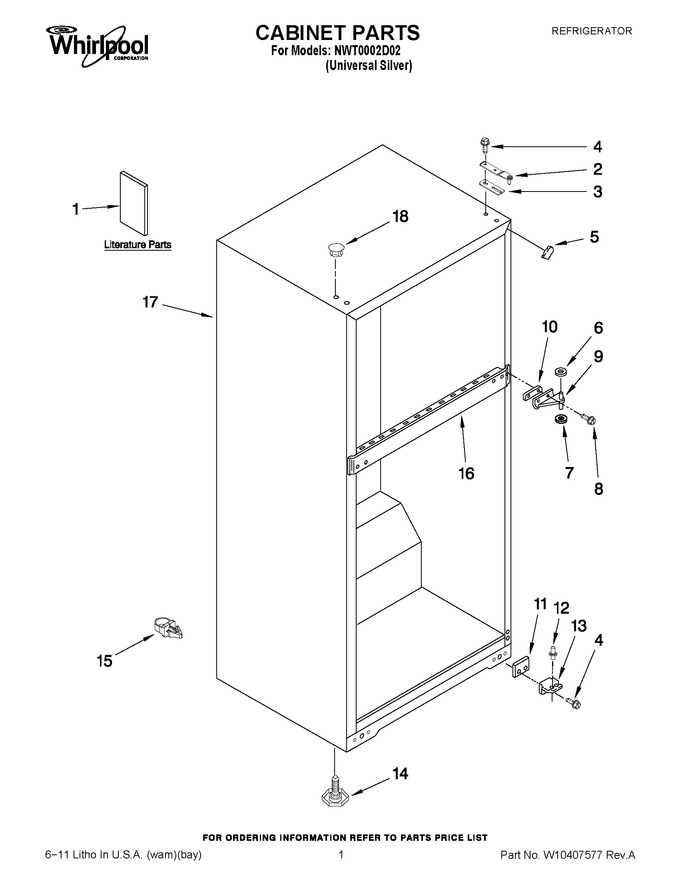

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10201293 | Use & Care Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./ Fzr. |
|
$ 30.30 | |||||
| 2 | W10225158 | Hinge, Top |
|
- | |||||
| 3 | W10225156 | Shim, Hinge Top |
|
- | |||||
| 4 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 5 | 2326063 | Filler, Corner |
|
- | |||||
| 6 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 7 | WP487802 | Washer (Replaces: 487802) |
|
Immediately | $ 7.12 | ||||
| 8 | 3400112 | Screw |
|
$ 62.96 | |||||
| 9 | 2211114 | Hinge, Center |
|
- | |||||
| 10 | 2166043 | Shim, Hinge Center |
|
$ 59.80 | |||||
| 11 | 2211299 | Shim, Hinge Bottom |
|
$ 11.01 | |||||
| 12 | W10215067 | Hinge-pin, Bottom |
|
- | |||||
| 13 | W10234091 | Hinge-butt, Bottom |
|
- | |||||
| 14 | W11117769 | Leg, Leveler (Replaces: 937220) |
|
Immediately | $ 16.61 | ||||
| 15 | 2219077 | Clip, Harness |
|
$ 55.06 | |||||
| 16 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 17 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 18 | 2326060 | Hole Plug |
|
$ 56.81 |
