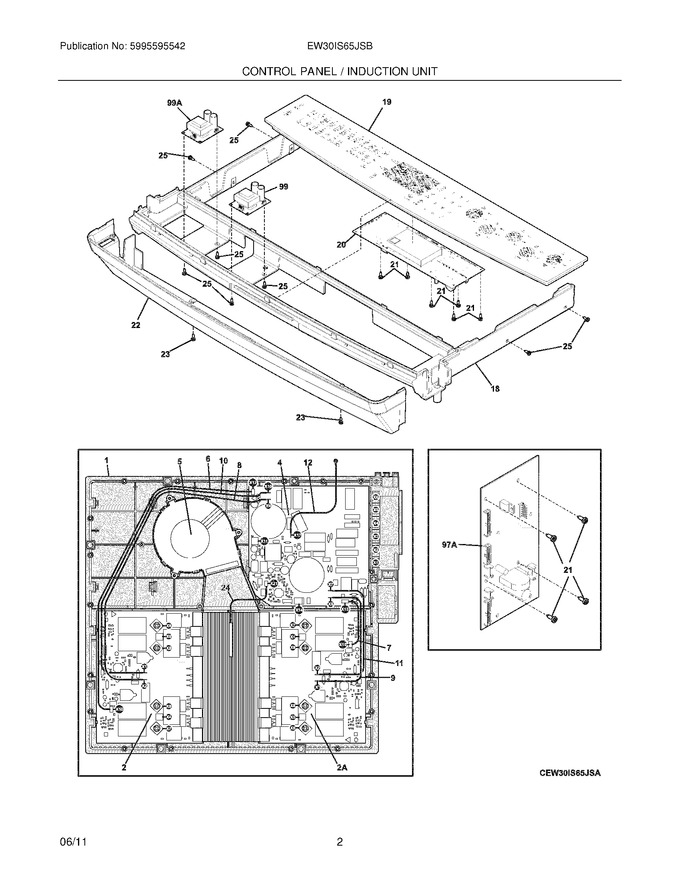

03 - Control Panel / Induction Unit


05 - Body


07 - Top/drawer


09 - Door


14 - Wiring Diagram


15 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	318900302		Subframe,control				$ 257.51
21	131892100		Screw,control Mtg ,6-32 X .25 ,(5)   (Replaces: 316524400)		Appelez-nous	-
22	318905005		Panel,service ,stainless				$ 450.32
23	5304401361		Screw,8-18 X 0.750 ,black				$ 9.71
25	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
F1	318329602		Housing Assembly,induction ,w/electronics			Immediately	$ 1,079.01
F10	318052582		Power Cable Set,filter ,18`` ,blue ,to Generator,x8/x2		Appelez-nous	-
F11	318052579		Power Cable Set,generator ,6`` ,black ,to Filter,x2/x7-x2/x56		Appelez-nous	-
F12	318532141		Ground Wire,5.5``		Appelez-nous	-
F19	318387122		Control Assembly,glass ,black ,w/interface				$ 839.39
F2	318347101		Generator,circuit Board ,left Hand ,2 Zone				$ 465.45
F20	316576610		Controller,electronic ,es630				$ 433.32
F2A	318347102		Generator,circuit Board ,right Hand ,2 Zone			Immediately	$ 949.23
F4	5304454971		Filter,circuit Board ,large   (Replaces: 318347000)				$ 788.28
F5	318346900		Cooling Fan Assembly,large		Appelez-nous	-
F6	318348001		Communication Cable,generator ,18`` ,to Filter,x10/x12		Appelez-nous	-
F7	318348000		Communication Cable,generator ,6`` ,to Filter,x10/x13		Appelez-nous	-
F8	318052581		Power Cable Set,filter ,18`` ,black ,to Generator,x7/x1		Appelez-nous	-
F9	318052580		Power Cable Set,generator ,6`` ,blue ,to Filter,(2) ,x1/x8-x1/x55		Appelez-nous	-
F97A	316576452		Board,power ,uib			Immediately	$ 317.96
F99	316535200		Board,power Supply ,8v ,(2)				$ 408.36
F99A	316435703		Board,power Supply			Immediately	$ 394.48
FNI	318384488		Wiring Harness,alimentation ,power Board,to Power Supply				$ 96.16
FNI	318402354		Wiring Harness,interface ,uib Board ,to Control				$ 201.13
FNI	318402397		Harness,wiring ,generator				$ 110.30
FNI	318402340		Harness,wiring ,control Panel				$ 152.88
NI	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	5303323136		Screw-ground		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	318341200		Jumper,electronic ,(2)				$ 67.44
NI	318341500		Clamp,cord		Appelez-nous	-
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
