SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

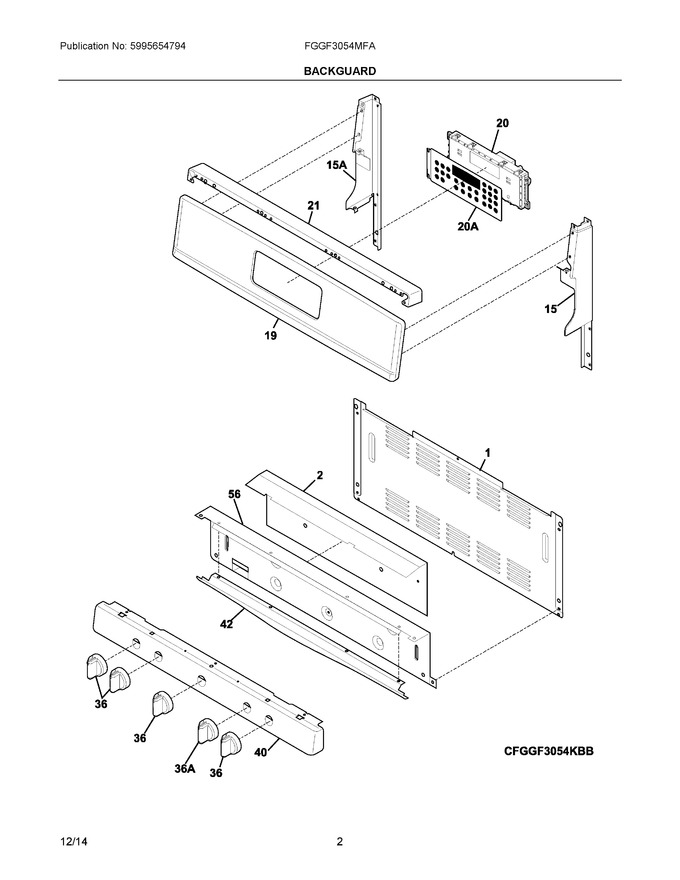

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield, Rear Wall				$ 70.04
2	316497601		Shield, Backguard, Inner				$ 49.40
15	316546702		Cap, Backguard, Black, Rh End				$ 52.55
19	316572406		Panel, Backguard, Br Alum				$ 276.35
20	316560118		Controller, Electronic, Es540			Immediately	$ 426.47
21	316546605		Cap, Backguard, Black, Top   (Replaces: 316546601)				$ 66.91
36	316564509		Knob, Top Valve, Stainless, (5)				$ 131.96
40	316249067		Panel, Manifold, Stainless Steel		Appelez-nous	-
42	316416204		Trim, Extrusion, Black   (Replaces: 316416200)				$ 43.99
56	316230708		Shield, Backguard, Inner   (Replaces: 316230701)				$ 61.66
15A	316546703		Cap, Backguard, Black, Lh End				$ 64.47
20A	316419828		Overlay, Clock, Black, Es540			Immediately	$ 18.83
36A	316564506		Knob, Top Valve, Stainless, (1)				$ 104.48
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
