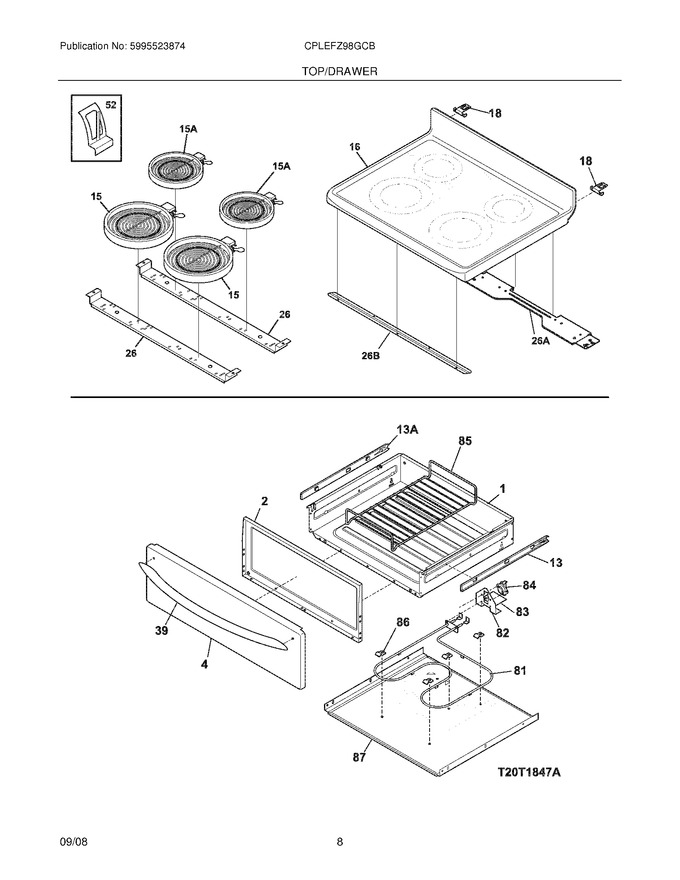

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408905		Drawer,warmer   (Replaces: 316408901)				$ 143.45
2	316403303		Liner,drawer				$ 67.79
4	5304523142		Panel,drawer Front ,stainless   (Replaces: 316409407)				$ 279.25
13	316415000		Glide,warmer ,inner Rh   (Replaces: 316415002)				$ 58.82
16	316456263		Main Top,smooth Top ,black				$ 483.99
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
26	316427600		Channel,element Support ,(2)		Appelez-nous	-
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
52	316461700		Clip,element Mtg				$ 12.05
82	316093200		Bracket,element Mtg		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093501		Thermo Disc,warmer Drawer				$ 107.10
85	807328301		Rack,warmer Drawer   (Replaces: 316425900)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base,warmer Drawer				$ 221.55
13A	316415001		Glide,warmer ,inner Lh			Immediately	$ 58.82
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
26B	316214200		Bracket,chassis Support ,front		Appelez-nous	-
F15	316555800		Element,dual ,6``/9`` ,surface ,1200w/2500w,radiant   (Replaces: 316418401)			Immediately	$ 138.90
F15A	318198952		Element,7``/5`` ,dual ,750w/1800w ,(2)   (Replaces: 316419902)			Immediately	$ 250.90
F81	316437300		Element,warmer Drawer				$ 106.17
FNI	316466717		Harness-wiring,surface		Appelez-nous	-
FNI	316001917		Harness-warmer Drawer				$ 66.31
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
