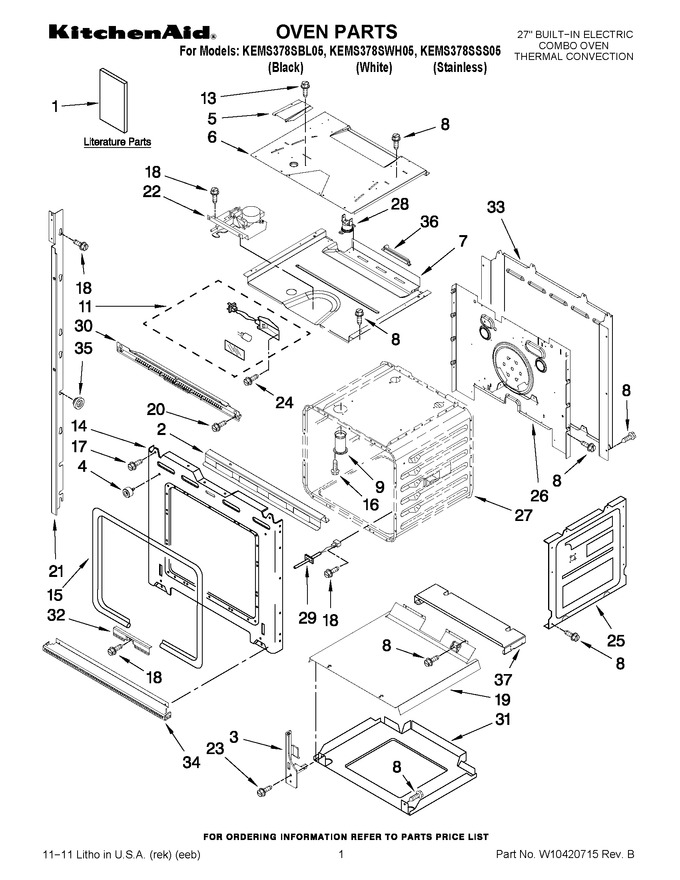

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8304337 Installation Instructions (english) Appelez-nous -
1 8304400 Label, Cook Guide (english) Appelez-nous -
1 W10075750 Installation Instructions (bi-lingual) Appelez-nous -
1 W10162223 Use & Care Guide (combo) Appelez-nous -
1 W10162181 Use & Care Guide (microwave) Appelez-nous -
1 W10220956 Tech Sheet (english) Appelez-nous -
1 W10220957 Tech Sheet (french) Appelez-nous -
1 8304338 Easy Set Guide (oven) Appelez-nous -
1 8304375 Easy Set Guide (microwave) Appelez-nous -
1 9762761 Safer Cooking Tips (english) Appelez-nous -
1 W10065852 Safer Cooking Tips (french) Appelez-nous -
2 W10153090 Bracket, Base Special Order $ 35.56

3 WP4455605 Hinge Receiver (left)   (Replaces: 4455605) In-Stock Immediately $ 103.82

3 WP4455606 Hinge Receiver (right)   (Replaces: 4455606) In-Stock Immediately $ 107.47

4 W10105790 Bumper, Door (2) Special Order $ 6.35

5 8303829 Exhaust,vent Slope Special Order $ 7.99

6 W10181198 Divider, Center Vent Appelez-nous -
7 W10204469 Top Chassis Appelez-nous -
8 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 104.97

11 WPW10307114 Assembly, Oven Light   (Replaces: W10307114) In-Stock Immediately $ 99.44

13 WP3400832 Screw (2)   (Replaces: 3400832) In-Stock Immediately $ 6.98

14 8304629 Frame, Front Appelez-nous -
15 8304494 Gasket, Door Special Order $ 64.64

16 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

17 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

18 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.04

19 4451477 Support, Insulation Appelez-nous -
20 WP4450038 Screw (2)   (Replaces: 4450038) Special Order $ 6.84

21 8303679WH Mounting Rail, Side Right (white) Appelez-nous -
21 8303680WH Mounting Rail, Side Left (white) Appelez-nous -
21 8303680BL Mounting Rail, Side Left (black) Special Order $ 35.54

21 8303679BL Mounting Rail, Side Right (black) Special Order $ 48.29

22 W11029221 Latch, Motorized   (Replaces: W10195935) In-Stock Immediately $ 280.85

23 WP4449743 Screw   (Replaces: 4449743) Special Order $ 6.47

24 4449748 Screw Special Order $ 12.20

25 W10782197 Side, Chassis   (Replaces: 4455641) Special Order $ 129.16

26 8304304 Back, Chassis Appelez-nous -
27 N/P Liner, Oven (not Serviceable) Appelez-nous -
28 WP8304452 Thermal Fuse   (Replaces: 8304452) In-Stock Immediately $ 104.76

29 WPW10131825 Sensor   (Replaces: W10131825) In-Stock Immediately $ 86.25

30 8303724 Vent, Center Appelez-nous -
31 8303772 Base, Chassis Appelez-nous -
32 8304478 Retainer, Gasket Appelez-nous -
33 8303517 Cover, Back Special Order $ 73.96

34 W10216231 Trim, Bottom (stainless) Special Order $ 62.93

34 8303706WH Trim, Bottom (white) Appelez-nous -
34 8303706BL Trim, Bottom (black) Special Order $ 65.34

35 WP4448444 Grommet, Mounting Rail   (Replaces: 4448444) Special Order $ 6.73

36 W10169348 Bracket, Thermostat Special Order $ 8.32

37 W10318623 Support, Microwave Module Special Order $ 36.78

NI 8303966 Insulation, Wrap Appelez-nous -
NI 8303968 Insulation, Back Appelez-nous -
