01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Microwave Door Parts


09 - Optional Parts (not Included)

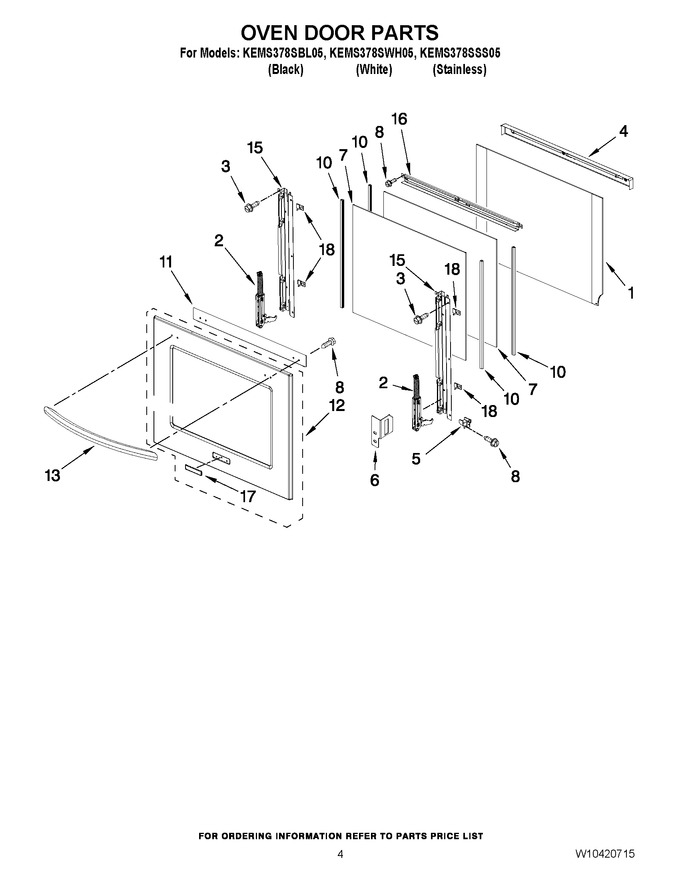

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303738BL		Door Liner		Appelez-nous	-
2	W10174288		Hinge, Door (2)				$ 47.60
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 6.98
4	8304580BL		Vent, Door Top				$ 81.93
5	8304378		Bracket, Door (left)				$ 83.98
5	8304377		Bracket, Door (right)				$ 40.81
6	W10137043		Cover,hinge (left)				$ 39.01
6	W10137044		Cover,hinge (right)				$ 38.61
7	8303732		Glass, Inner				$ 110.51
8	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
10	W10754409		Seal   (Replaces: 8304523)				$ 66.83
11	8304361BL		Bracket, Handle				$ 55.63
12	W10237352		Door Glass, Assembly (stainless)		Appelez-nous	-
12	8304001		Door Glass, Assembly (black)		Appelez-nous	-
12	8304003		Door Glass, Assembly (white)				$ 269.57
13	8303775SS		Door Handle (stainless)		Appelez-nous	-
13	8303775WH		Door Handle (white)		Appelez-nous	-
13	8303775BL		Door Handle (black)		Appelez-nous	-
15	8303745BL		Frame, Door Side				$ 70.23
16	8303754		Door, Top Bracket				$ 53.80
17	WPW10243392		Badge (black)   (Replaces: W10243392)				$ 63.17
17	WPW10243391		Badge (stainless)   (Replaces: W10243391)				$ 49.98
17	WPW10243393		Badge (white)   (Replaces: W10243393)				$ 59.99
18	8304522		Bumper, Glass				$ 31.91
