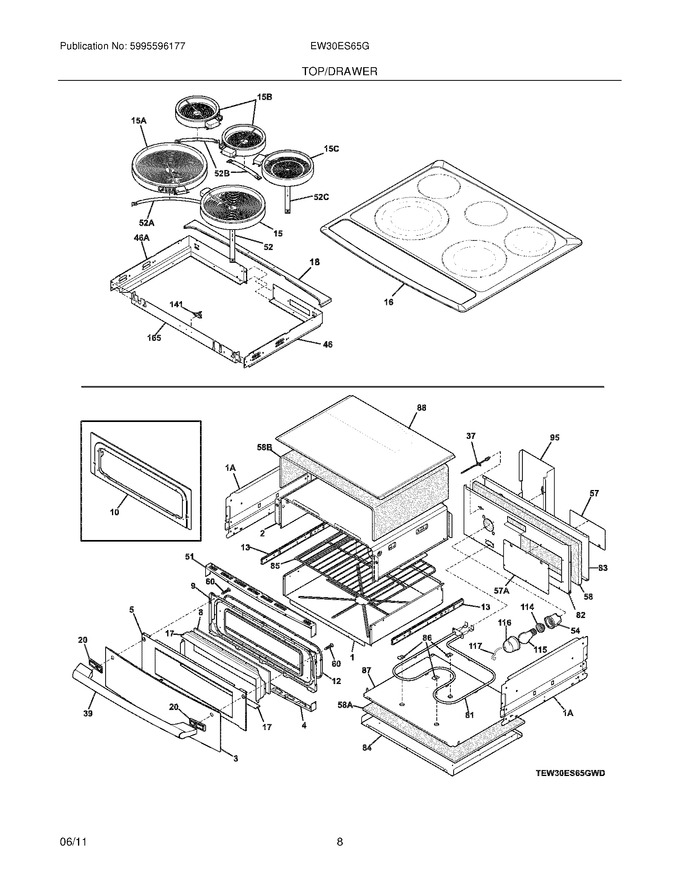

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318384703		Body,drawer				$ 340.51
2	318384601		Wrapper,outer				$ 172.94
3	5304481104		Glass Assy.,drawer ,black ,outer ,w/frame-tape		Appelez-nous	-
4	318904903		Trim,door ,black ,lower				$ 31.87
5	318391902		Deflector,drawer   (Replaces: 318391901)		Appelez-nous	-
8	318384800		Glass,inner				$ 203.89
9	318384903		Liner,drawer				$ 109.98
10	318385401		Cover,front ,drawer				$ 154.89
11	318385701		Frame,drawer ,outer				$ 343.25
12	318053326		Seal,warmer Drawer				$ 95.68
13	318385600		Glide,drawer ,(2)				$ 111.48
16	318389301		Maintop Assembly,glass/steel ,black				$ 794.18
17	318385000		Spacer,glass ,(2)				$ 19.80
18	318906900		Support,deflector Box				$ 37.47
20	318902901		Spacer,handle ,black ,(2)				$ 15.02
39	241881313		Handle,door ,black				$ 165.80
46	318568200		Box,burner ,rh				$ 23.99
51	318904703		Trim,door ,black ,upper				$ 57.28
52	318122010		Spring,element Mtg ,3000w				$ 62.51
54	5303271606		Housing,oven Light		Appelez-nous	-
57	318386300		Panel,service ,rear				$ 25.89
58	318362120		Insulation,rear		Appelez-nous	-
60	5304477736		Screw,machine ,10-24x29/32 ,(2)		Appelez-nous	-
82	318385302		Panel,back				$ 40.10
83	318385201		Panel,back Insul				$ 43.20
84	318385101		Panel,lower Insul		Appelez-nous	-
85	318908100		Rack,mini Oven				$ 163.72
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318295311		Panel,bottom				$ 71.20
88	318532305		Panel,deflector ,mini Oven   (Replaces: 318532302)		Appelez-nous	-
95	318303811		Shield,wire		Appelez-nous	-
114	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
115	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
116	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
117	5303205904		Clip,lamp Cover ,retainer				$ 7.67
165	318568301		Front Panel,burner Box		Appelez-nous	-
1A	318300002		Panel,warmer Drawer ,side ,(2)				$ 55.42
46A	318568201		Box,burner ,lh				$ 28.93
52A	318122011		Spring,element Mtg ,1200w/1800w				$ 62.14
52B	318122006		Spring,element Mtg ,small				$ 66.25
52C	318122008		Spring,element Mtg ,1800w/3000w				$ 90.80
57A	318386400		Panel,service ,front		Appelez-nous	-
58A	318362121		Insulation,bottom		Appelez-nous	-
58B	318362129		Insulation,upper		Appelez-nous	-
F141	318004902		Switch,thermal			Immediately	$ 71.44
F15	5304533520		Element,surface ,6``/9`` ,1400/3000w ,radiant   (Replaces: 316465002)			Immediately	$ 90.14
F15A	316216703		Element,surface ,triple ,6/9/12``				$ 284.07
F15B	318178110		Element,surface ,6`` ,1200w ,(2) ,radiant   (Replaces: 318198830)			Immediately	$ 122.86
F15C	318198952		Element,surface ,750/1800w ,dual Radiant   (Replaces: 318198936)			Immediately	$ 250.90
F37	316217005		Probe,oven Temp				$ 78.67
F81	318255302		Element,warmer Drawer				$ 138.02
FNI	318228981		Harness,wiring ,cooktop		Appelez-nous	-
FNI	318083098		Harness,wiring ,mini Oven				$ 43.52
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	318534402		Gasket,maintop				$ 96.54
NI	318403105		Bracket,bridge ,(2)   (Replaces: 318403102)				$ 49.62
NI	318534601		Plate,wire Shield		Appelez-nous	-
NI	5304447556		Washer,flat ,(2)		Appelez-nous	-
NI	316459400		Pad,cleaning		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
