SELECT A DIAGRAM

01 - Cover


03 - Controls/induction Unit

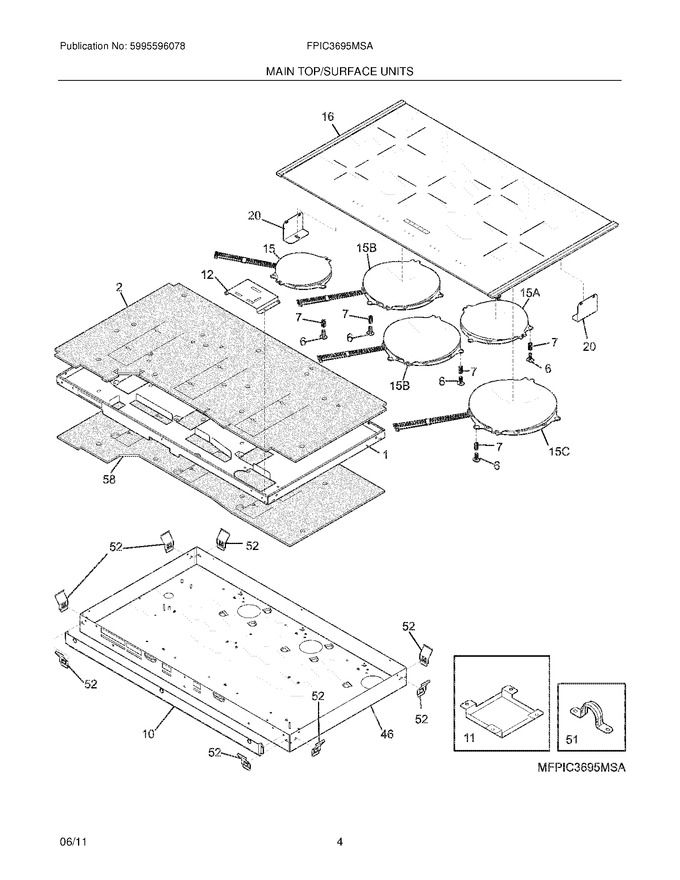

05 - Maintop/surface Units


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318533826		Panel,mounting		Appelez-nous	-
2	318330568		Insulation,carrier Panel		Appelez-nous	-
6	318405000		Pin,guide ,elements ,(6)				$ 19.38
7	318534300		Spring,guide Pin ,(6)				$ 7.09
10	318534001		Deflector,outer				$ 121.38
11	318381731		Deflector,air		Appelez-nous	-
12	318577902		Shield,emi		Appelez-nous	-
20	318121915		Bracket,retainer ,(2)				$ 18.64
46	318225458		Box,burner		Appelez-nous	-
51	318389600		Bracket,conduit Mtg.				$ 12.76
52	318560900		Spacer,spring ,(8)				$ 14.18
58	318330570		Insulation,service Panel		Appelez-nous	-
F15	318329241		Element,induction Coil ,140mm				$ 229.03
F15A	318329242		Element,induction Coil ,180mm				$ 268.46
F15B	318329243		Element,induction Coil ,210mm				$ 312.44
F15C	318329244		Element,induction Coil ,260mm				$ 363.59
F16	318935221		Main Top Assy,glass ,black/stainless ,complete,w/control Board				$ 1,104.59
NI	5304462994		Screw,8-32 X 5/16		Appelez-nous	-
NI	73218-3010		Foam Tape,3/8``   (Replaces: 5303323177)				$ 45.36
NI	5304424462		Foam Tape,1/2`` X 14``			Immediately	$ 69.77
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303325170		Nut,keps ,8-32 ,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
