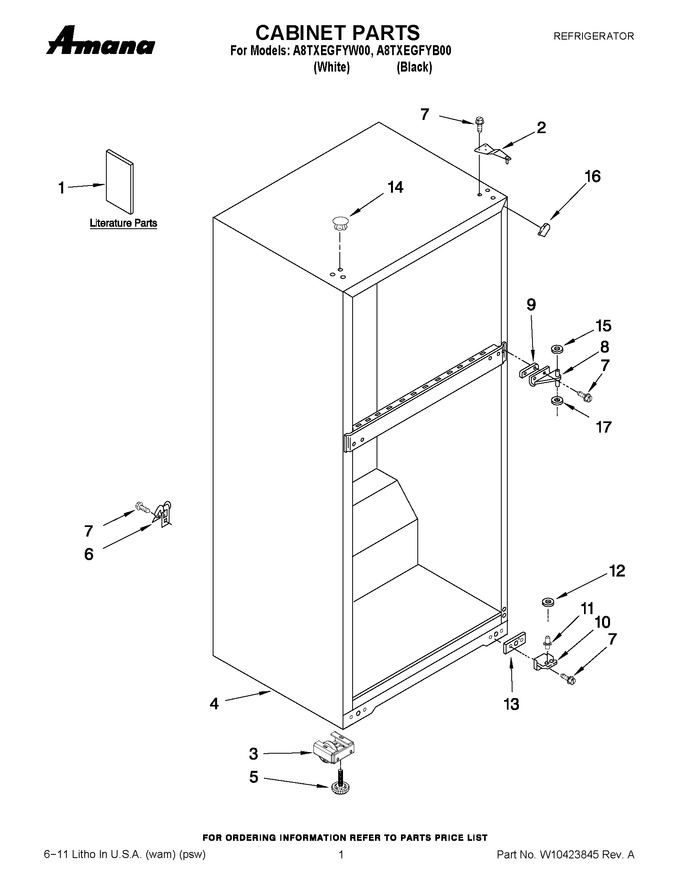

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10315504 | Energy Label |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./ Fzr. |
|
$ 30.30 | |||||
| 1 | W10214129 | Use & Care Guide |
|
- | |||||
| 1 | W10344152 | Service & Wiring Sheet |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2261963) |
|
Immediately | $ 89.51 | ||||
| 3 | WPW10142530 | Roller, Front (Replaces: W10142530) |
|
Immediately | $ 101.23 | ||||
| 4 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 5 | WPW10133299 | Screw, Leveler (Replaces: W10133299) |
|
$ 10.58 | |||||
| 6 | 549193 | Clamp, Cord |
|
$ 12.05 | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 70.34 | |||||
| 9 | 2166043 | Shim, Hinge Center |
|
$ 59.80 | |||||
| 10 | WP2325482 | Hinge Butt (Replaces: 2325482) |
|
Immediately | $ 68.57 | ||||
| 11 | WP2325483 | Hinge-pin (bottom) (Replaces: 2325483) |
|
Immediately | $ 6.47 | ||||
| 12 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 13 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
$ 6.99 | |||||
| 14 | WP2183998 | Hole Plug (black) (Replaces: 2183998) |
|
$ 16.29 | |||||
| 14 | WP2151652 | Hole Plug (white) (Replaces: 2201012) |
|
$ 19.60 | |||||
| 15 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 16 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 6.93 | |||||
| 16 | W11500943 | Corner Filler (black) (Replaces: 2215384) |
|
$ 6.84 | |||||
| 17 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 8.89 |
