01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

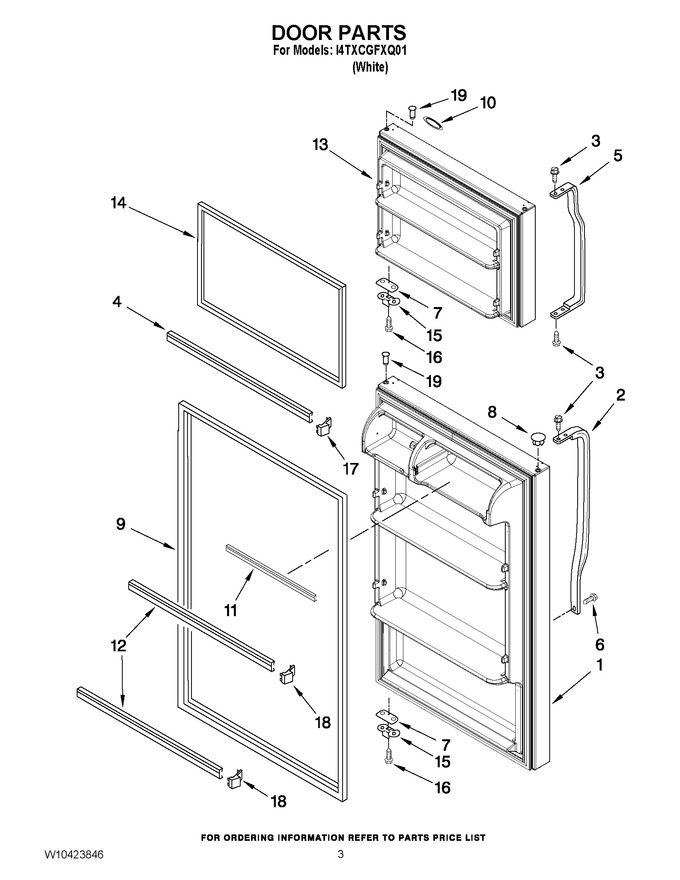

| 1 | W10287760 | Refrigerator Door Assembly (includes Illus. 9) (white) |
|
$ 585.30 | |||||
| 2 | WP2221946W | Handle, Rc (Replaces: 2221946W) |
|
Immediately | $ 117.10 | ||||
| 3 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.47 | ||||
| 4 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 5 | WP2202098 | Handle, Fc (Replaces: 2202098) |
|
$ 134.42 | |||||
| 6 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.15 | |||||
| 7 | WP2258681W | Shim, Door Stop (Replaces: 2258681W) |
|
Immediately | $ 6.47 | ||||
| 8 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
$ 7.02 | |||||
| 9 | WP2319265T | Door Gasket (mist Beige) (Replaces: W10190033) |
|
Immediately | $ 166.40 | ||||
| 10 | 2263431 | Nameplate |
|
$ 66.92 | |||||
| 11 | W11129820 | Trim, Door Shelf (Replaces: W10234242) |
|
Immediately | $ 109.15 | ||||
| 12 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 100.52 | |||||
| 13 | W10287763 | Freezer Door Assembly (includes Illus. 14) (white) |
|
$ 469.99 | |||||
| 14 | WP2319263T | Door Gasket (mist Beige) (Replaces: W10190031) |
|
Immediately | $ 152.58 | ||||
| 15 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 16 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.49 | |||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 18 | WP2195916K | Endcap, Trim (Replaces: 2195916) |
|
Immediately | $ 11.30 | ||||
| 19 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 6.98 |
