01 - Cabinet Parts

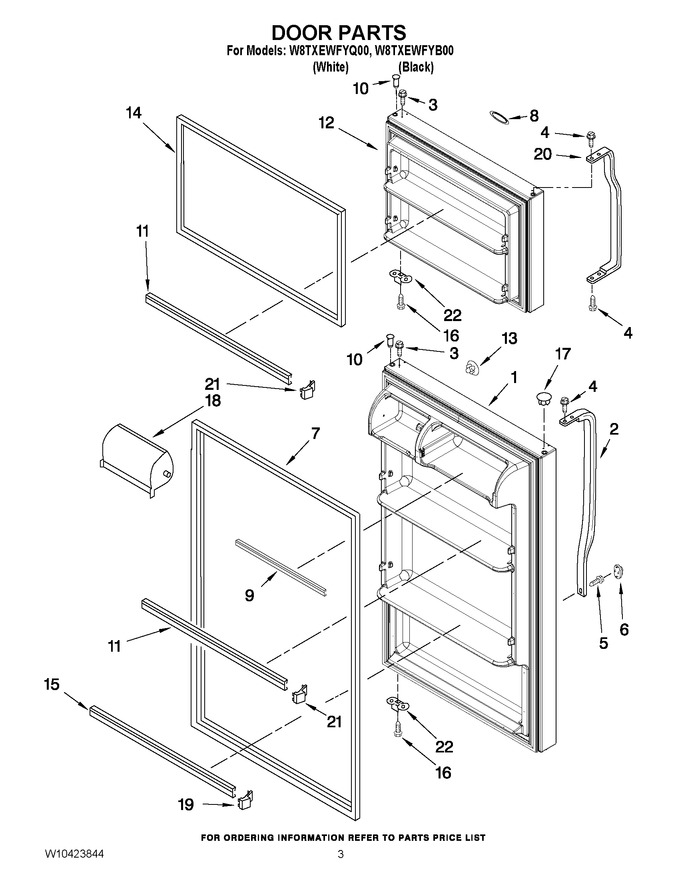

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2264750B | Refrigerator Door Includes (7 & 10) (black) |
|
- | |||||
| 1 | 2264750W | Refrigerator Door Includes (7 & 10) (white) |
|
- | |||||
| 2 | WP2326169B | Handle, Refrigerator (bow) (black) (Replaces: 2326169B) |
|
$ 132.64 | |||||
| 2 | WP2221946W | Handle, Refrigerator (bow) (white) (Replaces: 2221946W) |
|
Immediately | $ 117.10 | ||||
| 3 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.15 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.47 | ||||
| 5 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.15 | |||||
| 6 | WP2202819B | Cover, Screw (black) (Replaces: 2202819B) |
|
$ 9.80 | |||||
| 6 | WP2202819W | Cover, Screw (white) (Replaces: 2202819W) |
|
Immediately | $ 6.98 | ||||
| 7 | WP2319264T | Door Gasket, Magnetic (mist Beige) (Replaces: W10190032) |
|
Immediately | $ 173.44 | ||||
| 7 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 277.59 | |||||
| 8 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 79.87 | ||||
| 9 | W11129820 | Trim, Door Shelf (Replaces: W10234242) |
|
Immediately | $ 109.15 | ||||
| 10 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 6.98 | |||||
| 11 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 12 | 2263254W | Freezer Door Includes (10 & 14) (white) |
|
- | |||||
| 12 | 2263254B | Freezer Door Includes (10 & 14) (black) |
|
- | |||||
| 13 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 6.66 | ||||
| 13 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2189009) |
|
$ 6.53 | |||||
| 14 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 229.95 | ||||
| 14 | WP2319263T | Door Gasket, Magnetic (mist Beige) (Replaces: W10190031) |
|
Immediately | $ 152.58 | ||||
| 15 | WP2266738 | Trim, Door Shelf (Replaces: 2266738) |
|
$ 100.52 | |||||
| 16 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 17 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 17 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 18 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 52.88 | ||||
| 19 | WP2195916K | Plug-trim (Replaces: 2195916) |
|
Immediately | $ 11.30 | ||||
| 20 | 2202098B | Handle, Freezer (bow) (black) |
|
$ 129.63 | |||||
| 20 | WP2202098 | Handle, Freezer (bow) (white) (Replaces: 2202098) |
|
$ 134.42 | |||||
| 21 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 22 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 |
