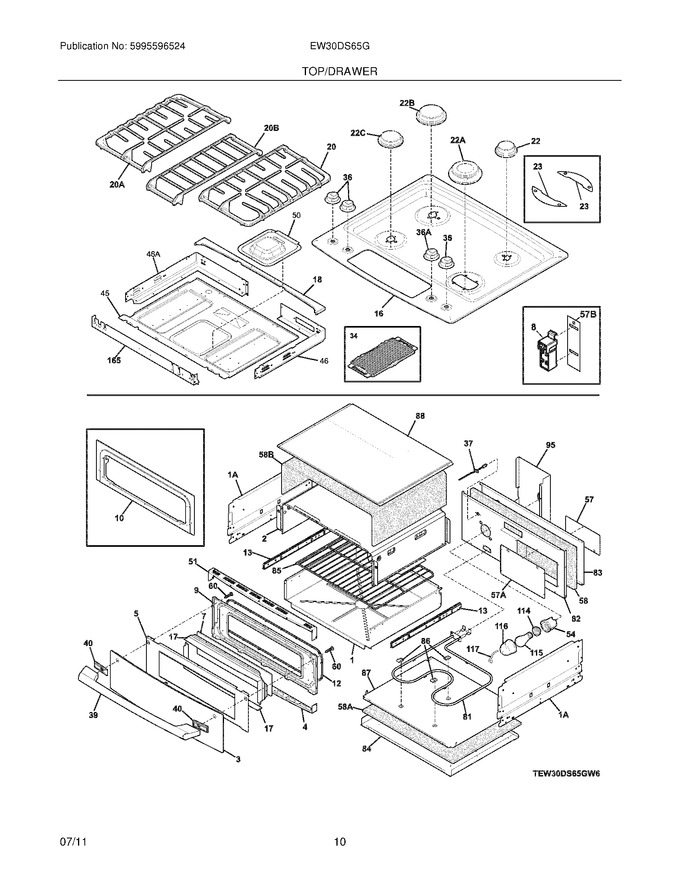

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318384703		Body,drawer				$ 340.51
2	318384601		Wrapper,outer				$ 172.94
3	5304481104		Glass Assy.,drawer ,black ,outer ,w/frame-tape		Appelez-nous	-
4	318904903		Trim,door ,black ,lower				$ 31.87
5	318391902		Deflector,drawer   (Replaces: 318391901)		Appelez-nous	-
7	318384800		Glass,inner				$ 203.89
9	318384903		Liner,drawer				$ 109.98
10	318385401		Cover,front ,drawer				$ 154.89
12	318053326		Seal,warmer Drawer				$ 95.68
13	318385600		Glide,drawer ,(2)				$ 111.48
16	318536553		Maintop Assembly,black ,w/support ,w/graphics		Appelez-nous	-
17	318385000		Spacer,glass ,(2)				$ 19.80
18	318906900		Support,deflector Box				$ 37.47
20	318909206		Grate,burner ,black ,rh				$ 310.17
22	316548600		Cap,burner ,5k ,black				$ 87.70
23	318406901		Plate,decorative ,stainless ,(2)		Appelez-nous	-
34	316534001		Griddle				$ 213.34
36	318905201		Knob,burner ,black ,(3)				$ 125.60
39	241881313		Handle,door ,black				$ 165.80
40	318902901		Spacer,handle ,black ,(2)				$ 15.02
45	318578700		Panel,burner Box ,bottom				$ 53.81
46	318568200		Box,burner ,rh				$ 23.99
50	318578801		Panel,service ,fan		Appelez-nous	-
51	318904703		Trim,door ,black ,upper				$ 57.28
54	5303271606		Housing,oven Light		Appelez-nous	-
57	318386301		Panel,service ,rear		Appelez-nous	-
58	318362120		Insulation,rear		Appelez-nous	-
60	5304477736		Screw,machine ,10-24x29/32 ,(2)		Appelez-nous	-
82	318385302		Panel,back				$ 40.10
83	318385201		Panel,back Insul				$ 43.20
84	318385101		Panel,lower Insul		Appelez-nous	-
85	318908100		Rack,mini Oven				$ 163.72
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318295311		Panel,bottom				$ 71.20
88	318532305		Panel,deflector ,mini Oven   (Replaces: 318532302)		Appelez-nous	-
95	318303811		Shield,wire		Appelez-nous	-
114	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
115	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
116	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
117	5303205904		Clip,lamp Cover ,retainer				$ 7.67
165	318568301		Front Panel,burner Box		Appelez-nous	-
1A	318300002		Panel,warmer Drawer ,side ,(2)				$ 55.42
20A	318909207		Grate,burner ,black ,lh				$ 252.74
20B	318909403		Grate,burner ,black ,center				$ 257.24
22A	316511502		Cap,burner ,18k ,black				$ 248.45
22B	316548800		Cap,burner ,14k ,black				$ 131.46
22C	316548700		Cap,burner ,9.5k ,black ,(2)				$ 134.23
36A	318905204		Knob,burner ,black ,dual				$ 115.45
46A	318568201		Box,burner ,lh				$ 28.93
57A	318386402		Panel,service ,front		Appelez-nous	-
57B	318295611		Panel,service				$ 15.12
58A	318362121		Insulation,bottom		Appelez-nous	-
58B	318362129		Insulation,upper		Appelez-nous	-
F37	316217005		Probe,oven Temp				$ 78.67
F8	808608802		Module,spark   (Replaces: 316262401)			Immediately	$ 82.93
F81	318255302		Element,warmer Drawer				$ 138.02
FNI	318083098		Harness,wiring ,mini Oven				$ 43.52
FNI	318004902		Switch,thermal			Immediately	$ 71.44
FNI	318532147		Ground Wire,w/terminal		Appelez-nous	-
NI	318403105		Bracket,bridge ,(2)   (Replaces: 318403102)				$ 49.62
NI	318534403		Gasket,maintop			Immediately	$ 59.16
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	318534601		Plate,wire Shield		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
