SELECT A DIAGRAM

01 - Cover

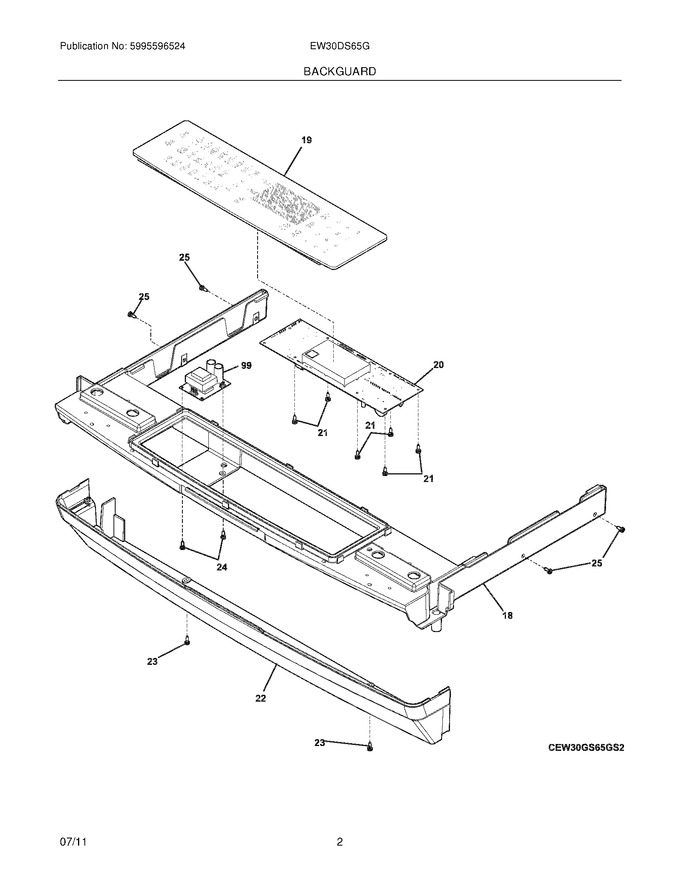

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


12 - Wiring Diagram


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	318900300		Subframe,control				$ 223.44
21	131892100		Screw,control Mtg ,6-32 X .25 ,(5)   (Replaces: 316524400)		Appelez-nous	-
22	318905003		Panel,service ,white				$ 348.02
23	5304417153		Screw,shoulder ,8-18 X 1/2 ,(4)		Appelez-nous	-
24	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
25	5303131801		Screw, 10 X 3/8		Appelez-nous	-
F19	318387130		Control Assembly,glass ,black ,w/interface				$ 1,690.38
F20	316576704		Controller,electronic ,es631				$ 384.79
F99	316535201		Board,power Supply ,8v				$ 349.42
FNI	318578326		Harness,wiring ,timer				$ 204.44
FNI	318578309		Harness,wiring ,power Supply		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02

    View Diagram in Separate Window       Print Part List
