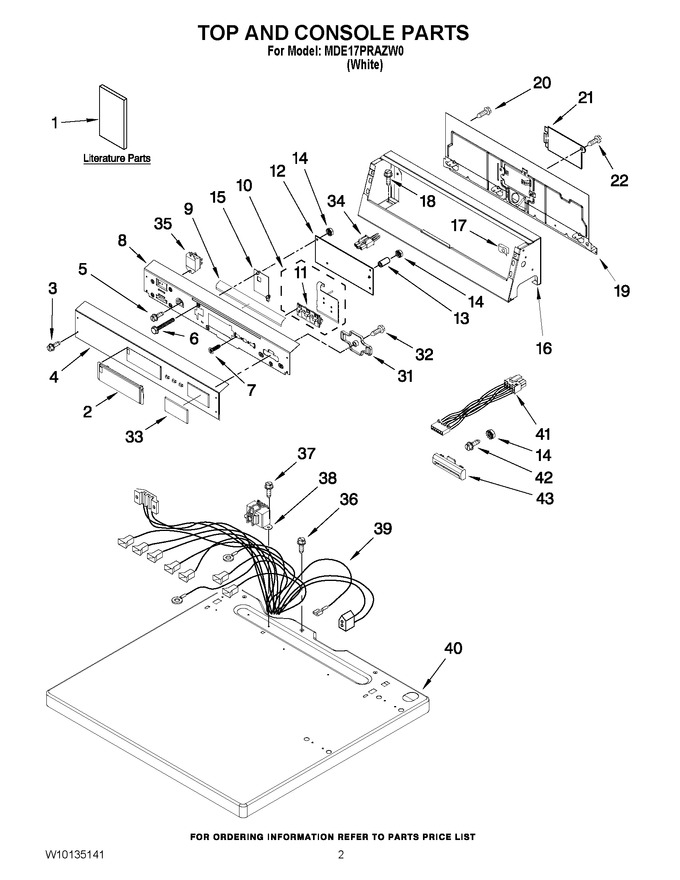

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10135141 | Repair Parts List |
|
- | |||||
| 1 | W10135291 | Installation Instructions Cr |
|
- | |||||
| 1 | W10135130 | Instructions Installation |
|
- | |||||
| 1 | W10135150 | Tech Sheet |
|
- | |||||
| 2 | WPW10131114 | Cover, Display (Replaces: W10131114) |
|
$ 42.79 | |||||
| 3 | WPW10131119 | Screw (Replaces: W10131119) |
|
$ 6.26 | |||||
| 4 | W10135182 | Facia / Overlay |
|
- | |||||
| 5 | WP489128 | Screw (Replaces: W10142728) |
|
$ 9.79 | |||||
| 6 | W11117300 | Screw (Replaces: W10137322) |
|
- | |||||
| 7 | W10756178 | Screw (Replaces: W10140652) |
|
$ 5.39 | |||||
| 8 | W10124215 | Bracket, Control |
|
- | |||||
| 9 | W10133515 | Deflector |
|
- | |||||
| 10 | WPW10135233 | Push Button & Switch Assembly (Replaces: W10135233) |
|
$ 168.34 | |||||
| 11 | WPW10424308 | Push Button (Replaces: W10131113) |
|
Immediately | $ 18.38 | ||||
| 12 | WPW10130081 | Control Board (Replaces: W10130081) |
|
$ 277.17 | |||||
| 13 | W11117166 | Spacer (Replaces: W10133514) |
|
- | |||||
| 14 | WPW10139046 | Nut 6-32 (Replaces: W10139046) |
|
$ 7.91 | |||||
| 15 | W10161476 | Shield, Probing |
|
$ 70.65 | |||||
| 16 | W10207168 | Console (Replaces: W10137300) |
|
- | |||||
| 17 | WPW10131123 | Nut, No.8 U Type (Replaces: W10131123) |
|
$ 6.94 | |||||
| 18 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 6.75 | |||||
| 19 | 285909 | Panel, Rear (upper) (Replaces: 8317305) |
|
$ 224.07 | |||||
| 20 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 21 | WPW10119283 | Cover, Terminal Block (Replaces: 8576583) |
|
$ 115.52 | |||||
| 22 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 7.04 | ||||
| 31 | W11775266 | Retainer, Card Reader Cover (Replaces: W10137770) |
|
- | |||||
| 32 | 3400618 | Screw |
|
$ 58.23 | |||||
| 33 | W11164066 | Cover, Card Reader (Replaces: W10137769) |
|
- | |||||
| 34 | W11129439 | Jumper, Service Vault Switch (Replaces: W10133282) |
|
$ 15.14 | |||||
| 35 | W10133335 | Relay, Motor |
|
$ 40.14 | |||||
| 36 | W11676450 | Screw (Replaces: 3400000) |
|
$ 12.65 | |||||
| 37 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 38 | WPW10131839 | Transformer 120 To 22.5 Vac. (Replaces: W10131839) |
|
Immediately | $ 120.20 | ||||
| 39 | W10111009 | Harness, Main |
|
$ 260.62 | |||||
| 40 | WPW10136704 | Top (Replaces: W10136704) |
|
$ 234.39 | |||||
| 41 | W10858740 | Harness, Card Reader (Replaces: W10133304) |
|
$ 21.56 | |||||
| 42 | WPW10143462 | Screw (Replaces: W10143462) |
|
$ 5.40 | |||||
| 43 | WPW10131115 | Bezel (Replaces: W10131115) |
|
$ 7.63 |
