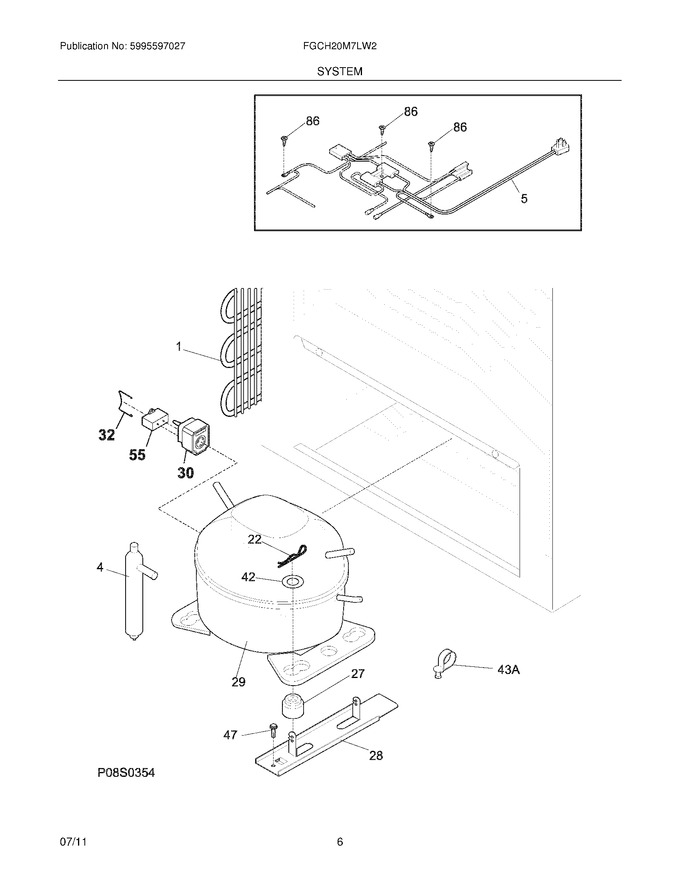

07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5303305677 | Drier-filter (Replaces: 216987501) |
|
Immediately | $ 31.67 | ||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 2.84 | |||||
| 27 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 42.53 | |||||
| 28 | 5304464023 | Support,compressor |
|
- | |||||
| 30 | 216954218 | Controller |
|
$ 91.01 | |||||
| 32 | 216954300 | Clip,controller |
|
$ 17.01 | |||||
| 42 | 216232701 | Washer,flat |
|
$ 2.10 | |||||
| 47 | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping |
|
$ 13.01 | |||||
| 55 | 297286803 | Capacitor-run,15 Mf (Replaces: 216985001) |
|
Immediately | $ 28.77 | ||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 43A | 5303212614 | Clip,harness Mount |
|
$ 2.88 | |||||
| F1 | 5303280307 | Condenser |
|
$ 640.71 | |||||
| F29 | 5304478809 | Compressor (Replaces: 297223400) |
|
Immediately | $ 584.96 | ||||
| F5 | 216987303 | Harness-main |
|
$ 95.24 | |||||
| NI | 297102800 | Spacer-tube |
|
- |
