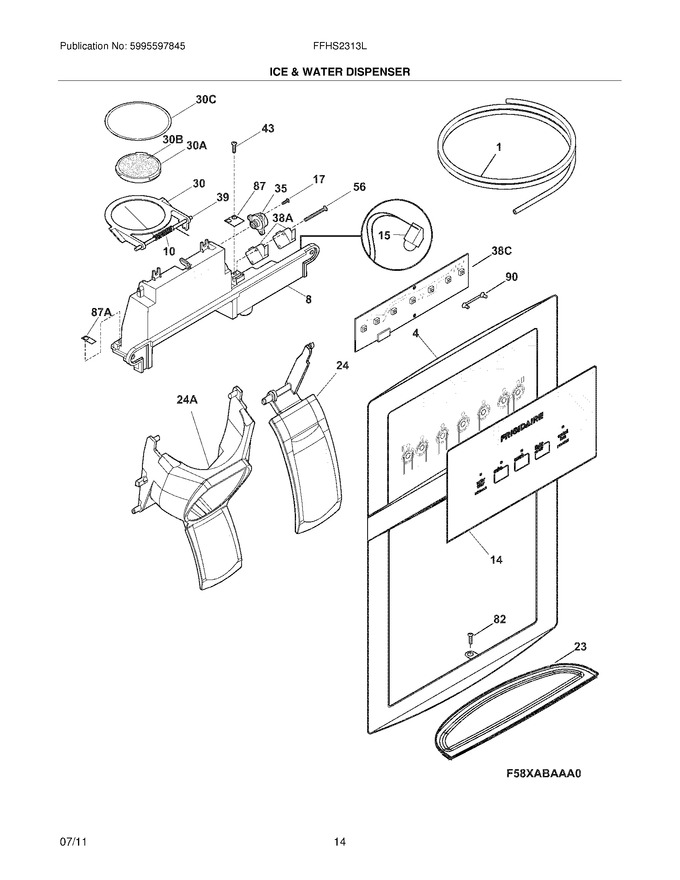

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
4	808048105		Cover Assembly,black   (Replaces: 242097903)				$ 88.22
8	242083403		Module-dispenser				$ 186.95
10	241688901		Spring-torsion			Immediately	$ 21.27
14	242083003		Label-module Cover,black				$ 71.59
17	241679801		Screw				$ 14.18
23	241947003		Drip Tray,black				$ 23.39
24	242083603		Actuator-water,black				$ 71.87
30	241688401		Door Assy-ice Chute				$ 49.62
35	241689301		Damper-rotary				$ 70.52
39	241688801		Pin-hinge				$ 43.24
43	215296301		Screw,plask H/l ,no.6 X 3/8		Appelez-nous	-
56	241689201		Screw-micro Switch,pan Head				$ 13.46
82	5304453707		Screw,plask ,no.8-18 X .500   (Replaces: 240363402)			Immediately	$ 15.92
87	241688302		Bearing Plate				$ 19.85
90	241732703		Light Pipe,reflector		Appelez-nous	-
24A	242083503		Actuator-ice,black				$ 114.82
30A	241688501		Door Center				$ 52.97
30B	241688601		Insulation-door				$ 63.17
30C	241688701		Door Seal				$ 40.46
87A	241688301		Bearing Plate				$ 19.85
F15	242065203		Light-led   (Replaces: 242070901)				$ 103.48
F38A	242065203		Harness-wiring   (Replaces: 242065201)				$ 103.48
F38A	241689104		Switch-micro,single Pole ,double Throw				$ 117.66
F38C	242053503		Board-control			Immediately	$ 268.46
NI	218976419		Tube-water Inlet,valve To Door				$ 22.68
NI	241850615		Tube-water Inlet,inlet Valve ,to I/m Inlet   (Replaces: 218976915)				$ 34.73
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56
NI	218515403		Clip-grille				$ 29.06
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
NI	218976429		Tube-water Inlet,97.50`` ,brown/tan				$ 40.40
