01 - Cooktop Parts
02 - Chassis Parts

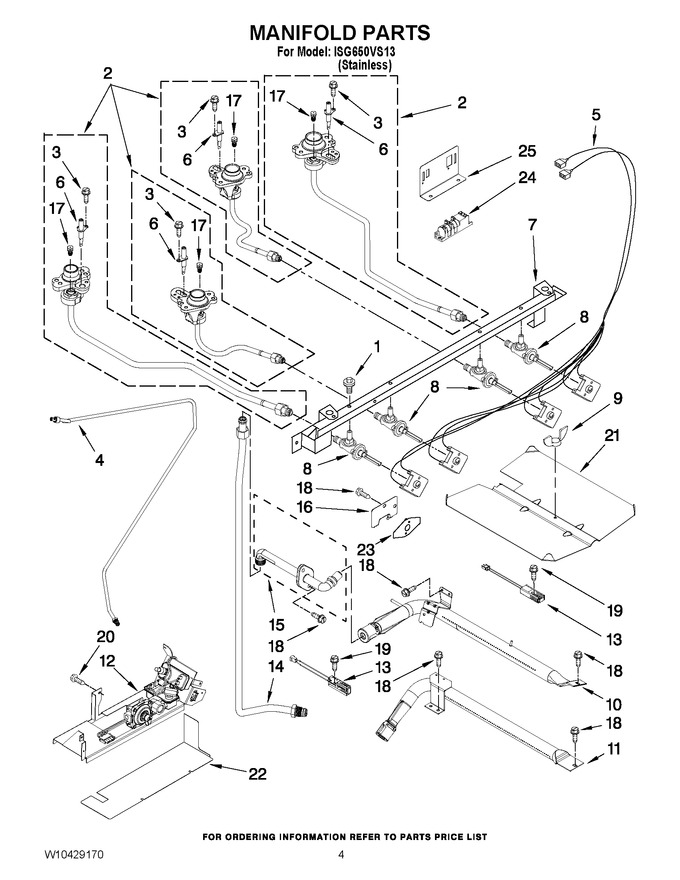

03 - Manifold Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P639-60 | Screw, Valve |
|
$ 5.53 | |||||
| 2 | WPW10407680 | Holder, Orifice (lr, 5k) (Replaces: 7527P084-60) |
|
$ 98.65 | |||||
| 2 | 7527P083-60 | Holder, Orifice (lf,rr-9.2k) |
|
- | |||||
| 2 | 74010961 | Holder, Orifice (rf, 12k) (Replaces: 7527P082-60) |
|
$ 97.14 | |||||
| 3 | 7101P519-60 | Screw |
|
- | |||||
| 4 | 7506P443-60 | Tubing, Main Supply |
|
- | |||||
| 5 | 7450P006-60 | Harness, Igniter Includes Switches |
|
- | |||||
| 6 | WP74009958 | Ignitor, Top Burner (Replaces: 82000311) |
|
Immediately | $ 28.85 | ||||
| 7 | 7513P472-60 | Pipe, Manifold |
|
- | |||||
| 8 | 7502P470-60 | Valve (rr) |
|
- | |||||
| 8 | 7502P471-60 | Valve (lf, Lr, Rf) |
|
- | |||||
| 9 | 7103P030-60 | Nut |
|
$ 6.37 | |||||
| 10 | 7505P293-60 | Burner, Broiler |
|
$ 89.91 | |||||
| 11 | 7505P254-60 | Burner, Bake |
|
- | |||||
| 12 | W10130932 | Valve/regulator (Replaces: 7501P231-60) |
|
Immediately | $ 334.23 | ||||
| 13 | 74007498 | Ignitor (bake/broil) (Replaces: 7432P106-60) |
|
Immediately | $ 78.40 | ||||
| 14 | 7506P301-60 | Tubing (broiler Fitting To Valve) |
|
- | |||||
| 15 | WP74010901 | Fitting, Broiler (Replaces: 7507P407-60) |
|
$ 75.29 | |||||
| 16 | 4005F421-45 | Cover, Igniter |
|
- | |||||
| 17 | 74010109 | Orifice, Burner (lr) (Replaces: 7509P081-60) |
|
$ 40.76 | |||||
| 17 | 7509P083-60 | Orifice, Burner (rf) |
|
- | |||||
| 17 | 7509P085-60 | Orifice, Burner (lf) |
|
- | |||||
| 17 | 7509P100-60 | Orifice, Burner (rr) |
|
- | |||||
| 18 | W11682789 | Screw (Replaces: 7101P360-60) |
|
Immediately | $ 11.66 | ||||
| 19 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.29 | |||||
| 20 | WP4159193 | Screw (Replaces: 7101P027-60) |
|
$ 4.29 | |||||
| 21 | 3601F307-45 | Baffle, Broil Burner |
|
$ 200.26 | |||||
| 22 | W10271712 | Cover, Burner Valve |
|
- | |||||
| 23 | 3605F269-45 | Plate, Broil Fitting |
|
- | |||||
| 24 | WP7431P064-60 | Module, Spark (Replaces: 7431P064-60) |
|
$ 278.09 | |||||
| 25 | 3807F752-45 | Support, Spark Module |
|
$ 27.55 | |||||
| NI | W10168551 | Spuds, Lp Gas (kit Of 4) |
|
$ 46.31 |
