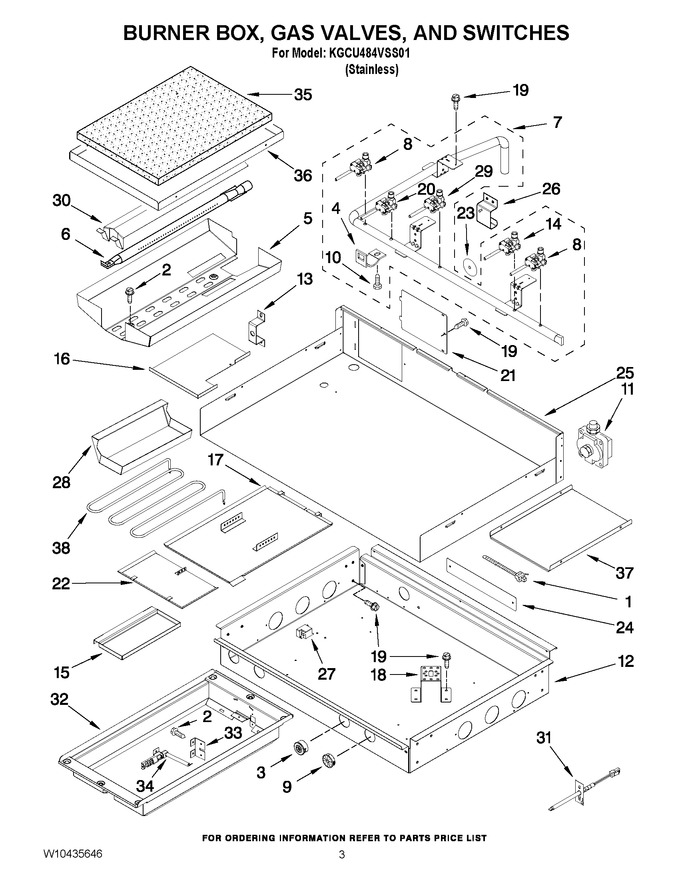

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11675299		Cable Tie   (Replaces: W10368807)				$ 11.60
2	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
3	309552		Bushing, Snap		Appelez-nous	-
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10269564		Deflector, Grill				$ 173.90
6	W10223569		Burner, Grill				$ 221.89
7	W10402600		Manifold Assy.		Appelez-nous	-
8	WPW10385582		Valve, Single (lr & Rf)15k   (Replaces: W10385582)			Immediately	$ 292.16
9	W10189097		Bushing, Burner Box				$ 6.85
10	W10189140		Screw, Valve Mtg				$ 5.85
11	WP9759091		Regulator, Pressure   (Replaces: 9759091)			Immediately	$ 291.80
12	W10371517		Burner Box		Appelez-nous	-
13	W10250475		Bracket, Grill Orifice Mounting		Appelez-nous	-
14	WPW10385583		Valve, Single (rr) 5k   (Replaces: W10385583)			Immediately	$ 284.66
15	W10250473		Drip Tray				$ 192.33
16	W10250474		Drip Tray Holder		Appelez-nous	-
17	W10250470		Drip Tray, Router 1				$ 128.77
18	W10369547		Bracket, Burner		Appelez-nous	-
19	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
20	WPW10371235		Valve, Gas (lf) 20k   (Replaces: W10371235)			Immediately	$ 241.57
21	W10115843		Cover, Ignition		Appelez-nous	-
22	W10250468		Drip Tray, Router 2		Appelez-nous	-
23	W10189177		Seal, Switch Cover				$ 8.57
24	W10250433		Cover, Plate		Appelez-nous	-
25	W10189155		Cover, Burner Box		Appelez-nous	-
26	8285790		Bracket, Mounting Orifice				$ 73.58
27	W11601369		Reignitor, Gas   (Replaces: W10116108)			Immediately	$ 60.62
28	W10276497		Drip Tray, Griddle				$ 341.06
29	W10305285		Valve, Gas Grill				$ 312.30
30	W10250462		Flame Spreader				$ 92.34
31	W10319835		Sensor				$ 205.10
32	WPW10267890		Module, Grill   (Replaces: W10267890)				$ 404.42
33	W10250461		Bracket, Grill Ignitor		Appelez-nous	-
34	W10268770		Ignitor, Grill				$ 138.59
35	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
36	W10246074		Tray-insulation, Griddle		Appelez-nous	-
37	W10145620		Tray-element, Griddle		Appelez-nous	-
38	W10193014		Element, Griddle				$ 277.25
NI	WPW10353133		Tubing, Gas Ct Back   (Replaces: W10353133)				$ 149.90
NI	W10280797		Tubing, Gas Ct Back Ka Urso Tubing, Gas		Appelez-nous	-
NI	W10353152		Ct Front Center				$ 67.15
NI	W10353141		Ct Front Right				$ 150.14
NI	W10353154		Ct Front Left			Immediately	$ 148.10
NI	W10158807		Tubing, Gas Center Grill				$ 81.13
