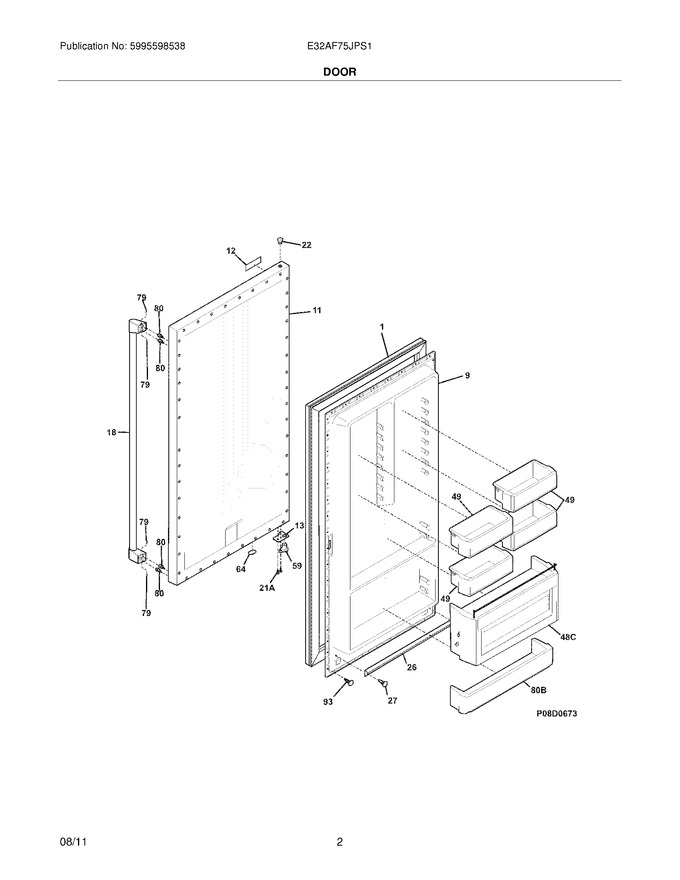

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505782		Gasket-door,gray   (Replaces: 216522370)			Immediately	$ 235.60
9	297280801		Panel-inner Door,frzr				$ 222.01
11	297353505		Panel-outer Door,stainless		Appelez-nous	-
12	241603101		Label,nameplate ,elux/icon				$ 80.96
13	297302801		Door Stop,lh				$ 19.74
18	297330600		Handle Assembly,stainless ,w/endcaps				$ 384.15
22	216970801		Bearing,hinge ,gray ,top				$ 4.25
26	216524201		Gasket,secondary				$ 49.62
27	5304472186		Clip,panel Mtg				$ 11.57
49	297291700		Bin-door,2-liter				$ 97.65
59	297302900		Bearing,door Stop				$ 7.00
64	216403700		Plug-button,hole Filler ,door Base   (Replaces: 216403701)				$ 58.12
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	297347700		Screw,hourglass ,10-32 X .375				$ 14.96
93	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
21A	297197500		Screw,door Stop Mtg ,fh38-16x.750 ,p Twin				$ 14.46
48C	297320700		Bin-door,w/lid				$ 620.34
80B	297292500		Shelf,condiment				$ 63.42
NI	297355300		Label,quick Start		Appelez-nous	-
NI	241701901		Screw Driver		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	297048000		Screw,anchor ,no.8 ,white				$ 12.05
