SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

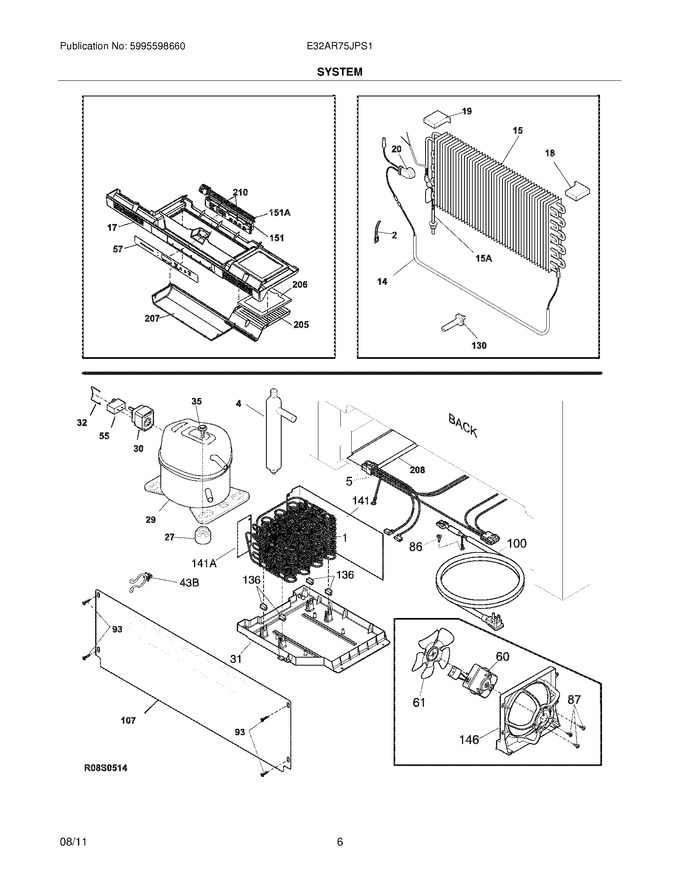

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	297269000		Box-control				$ 140.12
18	297078701		Insulator-evap,styrofoam ,rh				$ 3.62
19	297078801		Insulator-evap,styrofoam ,lh				$ 3.62
20	216731001		Thermostat, Defrost			Immediately	$ 81.75
27	297293300		Grommet,compressor		Appelez-nous	-
30	216954210		Controller				$ 85.05
31	297165800		Pan-drain				$ 89.15
32	297359700		Clip,controller		Appelez-nous	-
35	297368500		Bolt,compressor		Appelez-nous	-
55	297286803		Capacitor-run,15 Mf   (Replaces: 216985001)			Immediately	$ 28.77
57	297269402		Overlay   (Replaces: 297269403)			Immediately	$ 73.00
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
93	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
107	297165400		Shield,compressor ,compartment				$ 19.85
130	297244700		Support,evaporator Mtg				$ 4.26
136	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
141	297164200		Divider,air Flow				$ 26.23
146	297164000		Shroud-fan Orfice				$ 76.97
205	297294302		Holder,air Filter		Appelez-nous	-
206	EAFCBF		Filter-air   (Replaces: 242047801)			Immediately	$ 27.64
207	297294501		Shield-light,white				$ 36.02
208	297355201		Guard-wire		Appelez-nous	-
210	216905301		Screw,ph 3-24x.25 ,electronic Assy				$ 14.46
15A	297217900		Heat Exchanger   (Replaces: 297319400)			Immediately	$ 91.82
43B	297315800		Clip,wire				$ 10.13
F1	297152200		Condenser,dynamic				$ 171.33
F100	297366805		Cord-power,angled   (Replaces: 297169905)				$ 68.68
F14	216730700		Heater-defrost			Immediately	$ 116.44
F141	297194700		Divider,small ,air Flow		Appelez-nous	-
F146	216337701		Screw,hwh ,10-24 X 0.500 ,swage				$ 14.41
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F151	297326501		Electronic Control,assy			Immediately	$ 274.28
F151	808772801		Harness-jumper   (Replaces: 297327901)				$ 41.27
F29	5304507765		Compressor,w/o Electricals   (Replaces: 297068200)			Immediately	$ 677.23
F4	5303305677		Filter - Dryer   (Replaces: 216938601)			Immediately	$ 31.67
F5	297325401		Harness-main		Appelez-nous	-
F60	297279500		Motor-condenser Fan			Immediately	$ 141.66
NI	297110400		Thermistor			Immediately	$ 72.68
NI	216502500		Sleeve,suction Line				$ 10.85
NI	297102800		Spacer-tube		Appelez-nous	-
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03

    View Diagram in Separate Window       Print Part List
