SELECT A DIAGRAM

01 - Cover

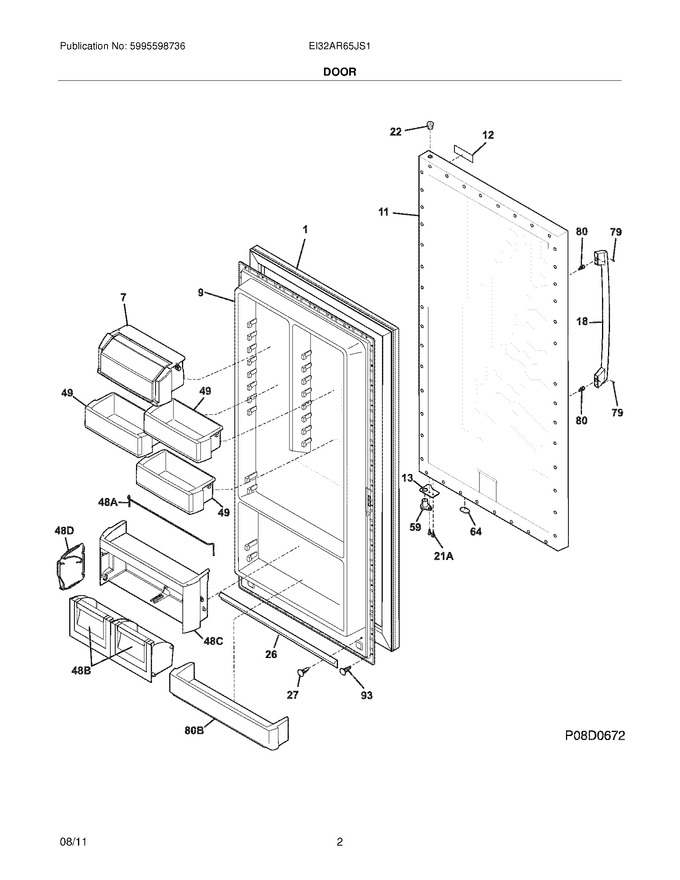

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505782		Gasket-door,gray   (Replaces: 216522370)			Immediately	$ 235.60
7	297326200		Dairy Bin,assembly				$ 122.58
9	297280801		Panel-inner Door,frzr				$ 222.01
11	297353502		Panel-outer Door,stainless		Appelez-nous	-
12	241873301		Nameplate,electrolux ,stainless				$ 11.15
13	297302800		Door Stop,rh				$ 22.16
18	241881309		Handle-door,stainless				$ 256.62
22	216970801		Bearing,hinge ,gray ,top				$ 4.25
26	216524201		Gasket,secondary				$ 49.62
27	5304472186		Clip,panel Mtg				$ 11.57
49	297291700		Bin-door,2-liter				$ 97.65
59	297302900		Bearing,door Stop				$ 7.00
64	216403700		Plug-button,hole Filler ,door Base   (Replaces: 216403701)				$ 58.12
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
93	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
21A	297197500		Screw,door Stop Mtg ,fh38-16x.750 ,p Twin				$ 14.46
48A	297291601		Wire				$ 93.14
48B	297261600		Bin-door,tilt Out				$ 153.28
48C	297261700		Shelf-door,gallon				$ 263.91
48D	297280600		Divider				$ 47.93
80B	297292500		Shelf,condiment				$ 63.42
NI	297355300		Label,quick Start		Appelez-nous	-
NI	297175300		Wrench,allen				$ 15.49
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	297333510		Trim Kit,built In ,single ,complete ,trimkitss1		Appelez-nous	-
NI	297333610		Trim Kit,built In ,dual ,complete ,trimkitss2		Appelez-nous	-
NI	240537301		Nut-anchor,door Hdl Screw				$ 11.34

    View Diagram in Separate Window       Print Part List
