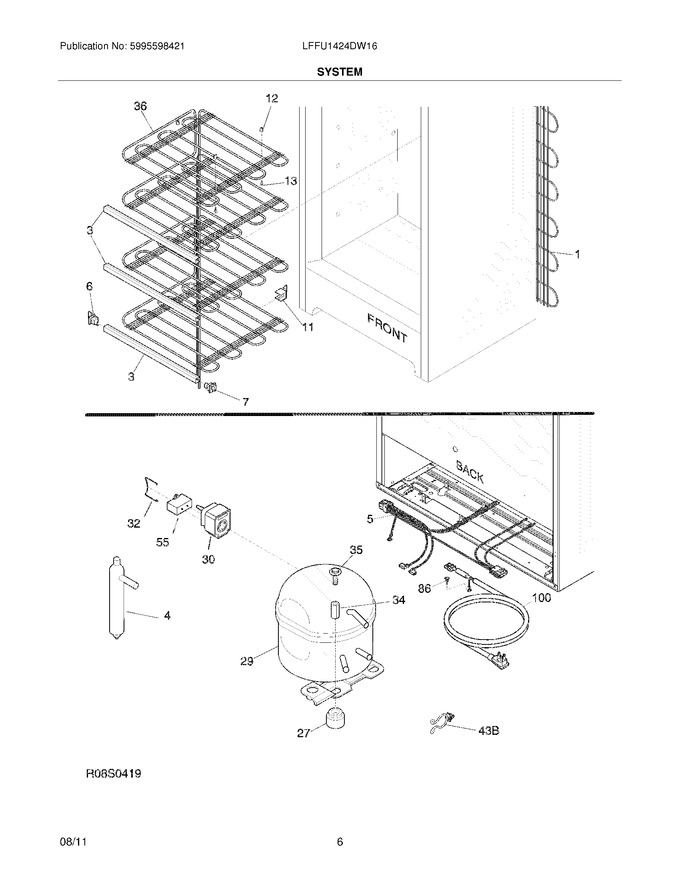

07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304509722 | Trim-shelf,white ,evaporator (Replaces: 216847804) |
|
$ 28.20 | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 216987501) |
|
Immediately | $ 31.67 | ||||
| 6 | 297001600 | Support-shelf,front Lh |
|
$ 18.08 | |||||
| 7 | 297001500 | Support-shelf,front Rh |
|
$ 18.08 | |||||
| 11 | 216474600 | Support-rear Shelf |
|
$ 16.55 | |||||
| 12 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 13 | 216138901 | Screw,hex Sems ,8-18ab X 1.00 ,evap |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 216954200 | Controller,compressor ,5 Speed |
|
$ 63.79 | |||||
| 32 | 216954300 | Clip,controller |
|
$ 17.01 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 297368500 | Bolt,compressor |
|
- | |||||
| 55 | 297286812 | Run Capacitor,10mf (Replaces: 297286801) |
|
Immediately | $ 11.78 | ||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 43B | 297315800 | Clip,wire |
|
$ 10.13 | |||||
| F1 | 5300123788 | Condenser |
|
$ 635.80 | |||||
| F100 | 297366805 | Cord-power (Replaces: 297169904) |
|
$ 68.68 | |||||
| F29 | 5304507767 | Compressor,w/o Electricals (Replaces: 216966300) |
|
$ 726.41 | |||||
| F36 | 297234400 | Evaporator,tubing Assy |
|
$ 369.42 | |||||
| F5 | 297171900 | Harness-main,w/light |
|
$ 66.34 | |||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 10.85 | |||||
| NI | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| NI | 241500305 | Screw, Self Pierce,no.8 ,18x.63 (Replaces: 297174300) |
|
$ 3.03 |
