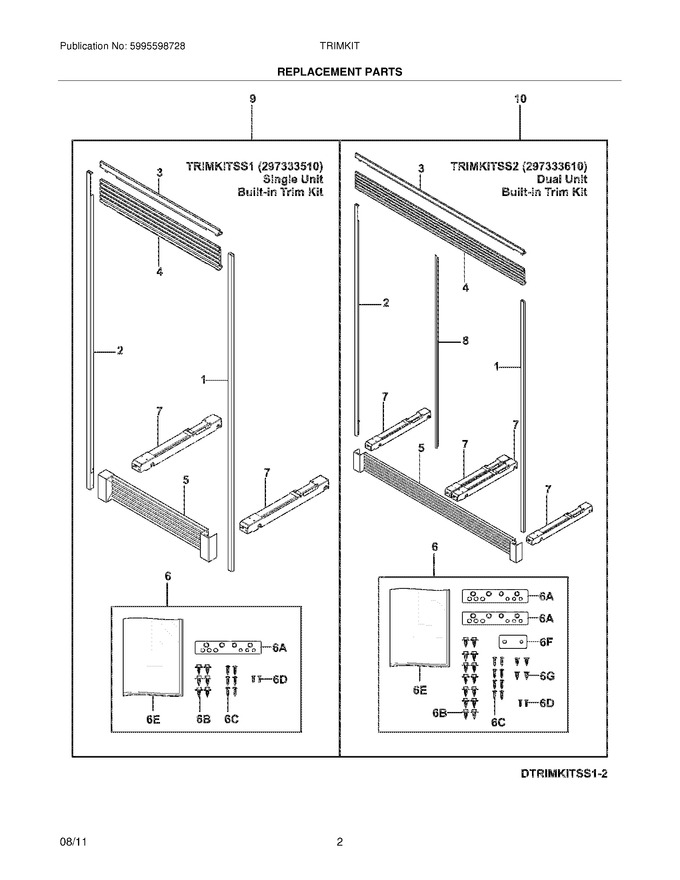

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 297332910 | Trim,side ,rh ,single |
|
- | |||||
| 2 | 297332911 | Trim,side ,lh ,single |
|
$ 207.69 | |||||
| 3 | 297332711 | Trim,top ,short ,single |
|
- | |||||
| 4 | 297332811 | Trim,top ,tall ,single |
|
- | |||||
| 5 | 297333311 | Kick Plate,single |
|
$ 210.97 | |||||
| 6 | 297343201 | Hardware Pack,complete ,single ,w/instructions |
|
$ 107.02 | |||||
| 7 | 297276900 | Leveler Assembly,support System ,w/rollers |
|
$ 208.11 | |||||
| 9 | 297333510 | Trim Kit,built In ,single ,complete ,trimkitss1 |
|
- | |||||
| 6A | 297333900 | · Tie Bar,hinge |
|
$ 46.62 | |||||
| 6B | 240578902 | Screw,hex Head ,1/4-20x5/8 ,hinge (Replaces: 297236250) |
|
Immediately | $ 14.18 | ||||
| 6C | 5304411997 | Screw,8-18 X 0.750 |
|
$ 2.37 | |||||
| 6D | 297142600 | Screw,blunt ,8-32 X 5/8 |
|
$ 13.01 | |||||
| 6E | 297299700 | · Installation Instructions |
|
- |
