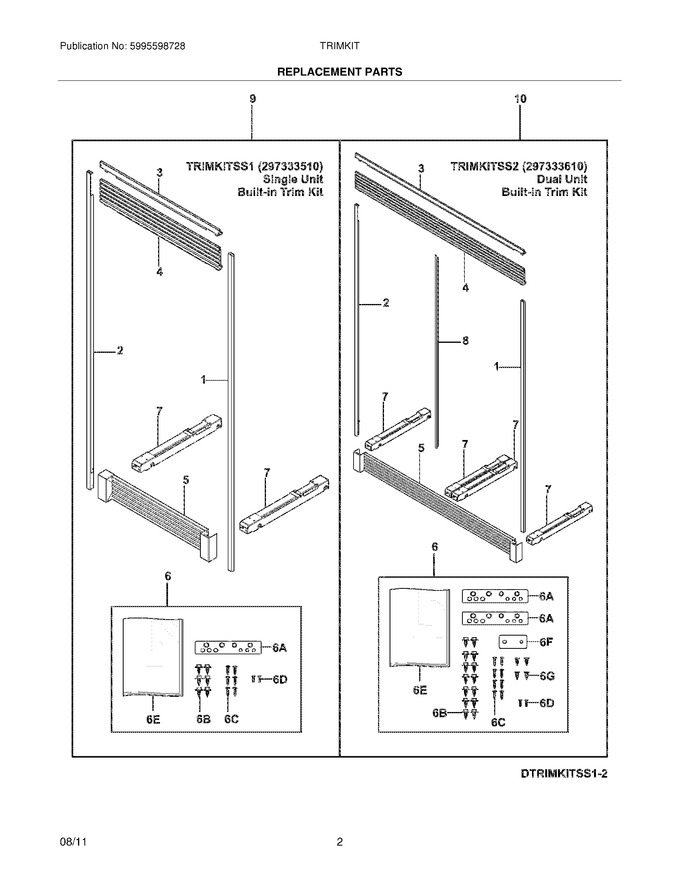

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 297349010 | Trim,side ,rh ,dual |
|
$ 217.30 | |||||
| 2 | 297349011 | Trim,side ,lh ,dual |
|
$ 261.77 | |||||
| 3 | 297332710 | Trim,top ,short ,dual |
|
$ 155.03 | |||||
| 4 | 297332810 | Trim,top ,tall ,dual |
|
- | |||||
| 5 | 297333310 | Kick Plate,dual |
|
$ 289.22 | |||||
| 6 | 297343200 | Hardware Pack,complete ,dual ,w/instructions |
|
$ 166.22 | |||||
| 7 | 297276900 | Leveler Assembly,support System ,w/rollers |
|
$ 208.11 | |||||
| 8 | 297336900 | Trim,center ,dual |
|
$ 236.04 | |||||
| 10 | 297333610 | Trim Kit,built In ,dual ,complete ,trimkitss2 |
|
- | |||||
| 6A | 297333900 | · Tie Bar,hinge |
|
$ 46.62 | |||||
| 6B | 240578902 | Screw,hex Head ,1/4-20x5/8 ,hinge (Replaces: 297236250) |
|
Immediately | $ 14.18 | ||||
| 6C | 5304411997 | Screw,8-18 X 0.750 |
|
$ 2.37 | |||||
| 6D | 297142600 | Screw,blunt ,8-32 X 5/8 |
|
$ 13.01 | |||||
| 6E | 297299700 | · Installation Instructions |
|
- | |||||
| 6F | 297333901 | · Tie Bar,back |
|
$ 13.86 | |||||
| 6G | 297337000 | · Screw,flat Head ,1/4-20 X .63 |
|
$ 14.09 |
