SELECT A DIAGRAM

01 - Cover


03 - Door

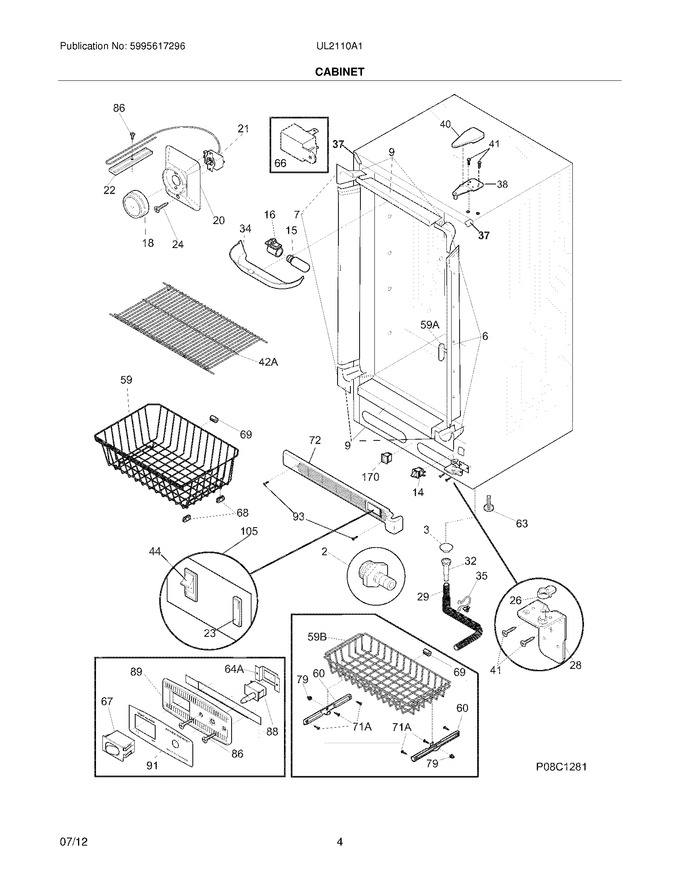

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	216269500		Adapter, Drain Hose				$ 14.81
3	216502600		Plug-drain,interior			Immediately	$ 17.35
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
7	297201100		Breaker Kit W/corners,lock Catch				$ 89.57
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W				$ 19.52
18	216707200		Knob,temp Control				$ 44.10
20	297013800		Cover-control Housing				$ 80.43
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
23	297087400		Light,signal ,amber		Appelez-nous	-
24	5304460604		Screw,type A ,10-24 X 3/8		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
28	297283900		Hinge-bottom,stepped Pin			Immediately	$ 54.23
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 13.74
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	297184402		Shield-light		Appelez-nous	-
35	216273000		Clip,wire Retainer				$ 22.42
37	297273904		Trim-cabinet Corner,white ,(2)   (Replaces: 297273900)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw,hex Head ,1/4-20x5/8 ,hinge   (Replaces: 297236250)			Immediately	$ 14.18
44	216823300		Switch-rocker				$ 47.15
59	5304497658		Basket,bottom   (Replaces: 297343600)				$ 117.85
60	297013500		Slide,shelf				$ 38.98
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide, Basket				$ 35.25
69	5305878546		Bumper, Basket				$ 7.23
72	297036902		Grille/kickplate,32`` ,white				$ 40.26
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
89	297013700		Bezel-power Defrost		Appelez-nous	-
91	216206400		Insert-bezel		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
105	216926601		Bracket,alarm, 1 Light		Appelez-nous	-
170	297280400		Valve,breather				$ 10.13
42A	297119601		Shelf,14.50x27.88		Appelez-nous	-
59A	216486500		Stop-basket,(2)				$ 20.58
59B	297347400		Basket,mid-level		Appelez-nous	-
64A	216009200		Bracket-dfr Switch		Appelez-nous	-
71A	297146820		Screw,8-18ab X.470 Qx				$ 7.33
F105	216804500		Harness-alarm/signal		Appelez-nous	-
F105	216926700		Shield				$ 42.06
F21	216788200		Control-temperature		Appelez-nous	-
F66	216713700		Buzzer,alarm				$ 74.60
F67	216823201		Switch-rocker,spst		Appelez-nous	-
F88	216380500		Switch-defrost		Appelez-nous	-
NI	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
NI	297164650		Bracket,lh Leg Levelor				$ 18.43
NI	297164651		Bracket,rh Leg Levelor				$ 17.51
NI	216795106		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	216502400		Grommet-shelf Mtg				$ 16.63

    View Diagram in Separate Window       Print Part List
