SELECT A DIAGRAM

01 - Cover


03 - Door

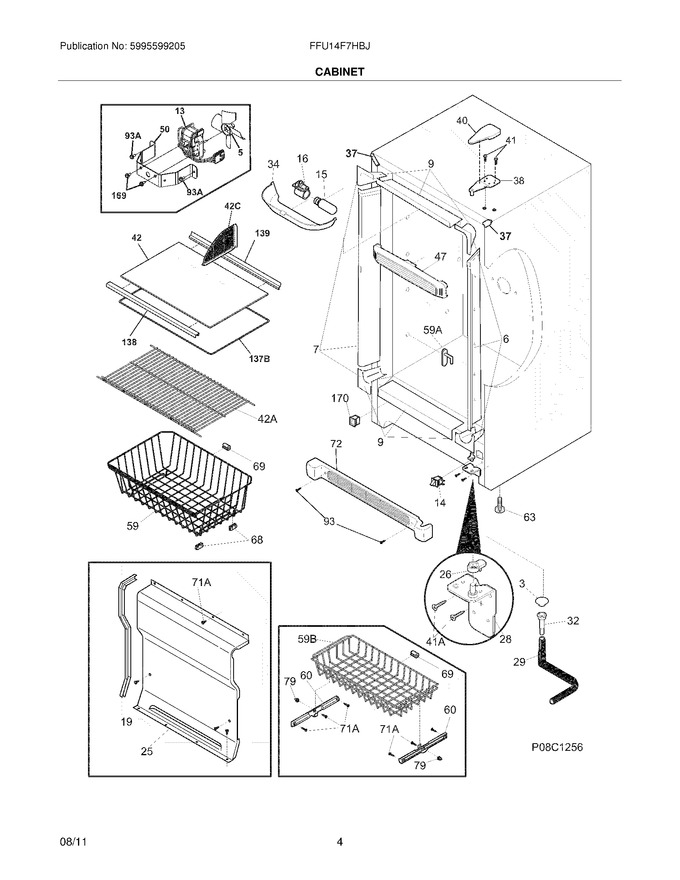

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	297200300		Breaker Kit W/corners,no Lock Slot				$ 39.69
7	297200500		Breaker Kit W/corners,incl Lock Catch				$ 74.99
9	297200200		Breaker Kit W/corners,28`` ,top And Bottom				$ 45.32
14	216922800		Switch,light/lamp ,ramp				$ 12.22
15	5304517886		Light Bulb,short ,blue Tint ,40w   (Replaces: 297114000)			Immediately	$ 73.06
16	297139500		Socket,light/lamp				$ 18.08
19	216204900		Gasket,evap Cover				$ 51.45
25	297098651		Cover-evaporator				$ 90.30
26	216503300		Ramp,door Closer				$ 8.82
28	297283900		Hinge-bottom,stepped Pin			Immediately	$ 54.23
29	5304510365		Hose-drain   (Replaces: 216313504)				$ 13.01
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	297184400		Shield-light				$ 21.16
37	297273901		Trim-cabinet Corner,black ,(2)		Appelez-nous	-
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164401		Cover-upper Hinge,black				$ 13.39
41	240578902		Screw,tamper Proof ,1/4-20 X 5/8   (Replaces: 297236200)			Immediately	$ 14.18
42	297166803		Glass-shelf				$ 104.14
47	297192902		Baffle,air ,blue		Appelez-nous	-
50	216394050		Bracket,fan Motor Mount				$ 22.75
59	5304497655		Basket,bottom   (Replaces: 297343300)				$ 120.28
60	297013500		Slide,shelf				$ 38.98
63	216396900		Screw,leveling Foot ,plastic ,adjustable			Immediately	$ 38.39
68	08009560		Glide-basket				$ 35.25
69	5305878546		Bumper-basket				$ 7.23
72	297199001		Grille/kickplate,28`` ,black				$ 26.09
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
138	297232302		Trim-shelf,front		Appelez-nous	-
139	297232202		Trim-shelf,rear		Appelez-nous	-
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
170	297280401		Valve,breather ,black				$ 16.75
41A	297236201		Screw,tamper Proof ,1/4-20 X 5/8		Appelez-nous	-
42A	216546200		Shelf,14.50 X 23.88 Wh,14.50x23.88 ,white		Appelez-nous	-
42C	297183802		Divider,blue ,glass Shelf				$ 24.01
59A	216486500		Stop-basket,(2)				$ 20.58
59B	297343900		Basket		Appelez-nous	-
71A	297146820		Screw,8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 55.32
F137	297166903		Frame				$ 83.97
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297164650		Bracket,lh Leg Levelor				$ 18.43
NI	297164651		Bracket,rh Leg Levelor				$ 17.51
NI	216327800		Clip,wire		Appelez-nous	-
NI	216795318		Energy Guide		Appelez-nous	-
NI	297257400		Label,start Guide				$ 2.98
NI	297281200		Instructions,elect Guide ,precision		Appelez-nous	-
NI	216502400		Grommet-shelf Mtg				$ 16.63

    View Diagram in Separate Window       Print Part List
